Impeller Pump DWG Block for AutoCAD

Impeller Pump DWG Block for AutoCAD

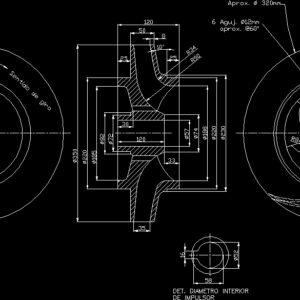

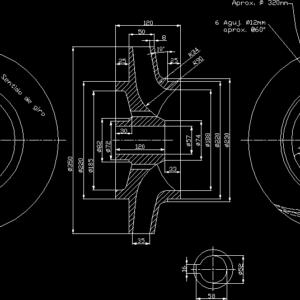

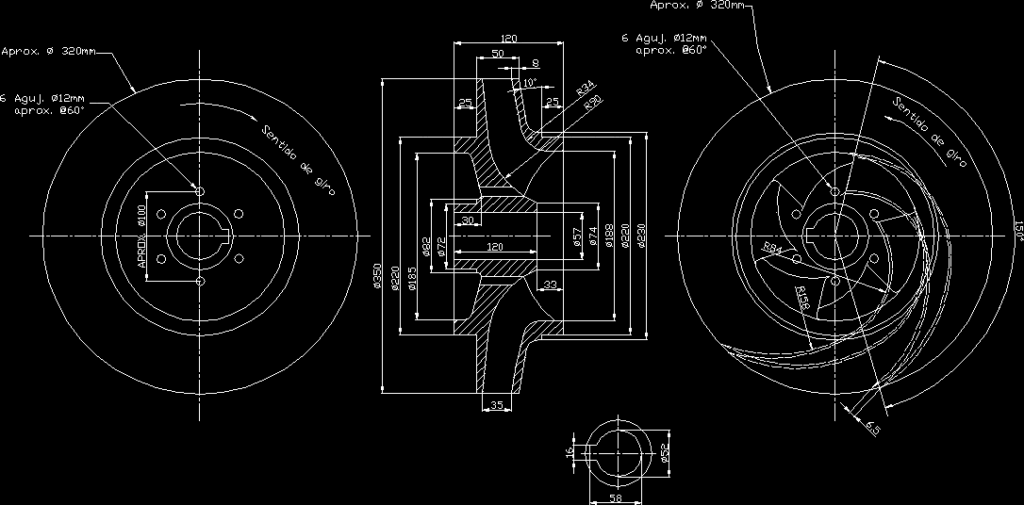

Centrifugal pump impeller

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

approx., approx., needle approx., turning sense, det. inner diameter of impeller, approx., needle approx., approx., turning sense

Raw text data extracted from CAD file:

d57 d350 d220 d185 d72 d220 d230 d74 120 50 25 25 d188 d82 30 120 6.5 R158 R84 d52 16 58 10° R34 R90 150° 33 APROX. d100 8 35 d350 d220 d185 d72 d220 d230 d74 120 50 25 25 d188 d82 30 120 Aprox. d 320mm 6 Aguj. d12mm aprox. @60° Sentido de giro d57 6.5 R158 R84 d52 16 58 DET. DIAMETRO INTERIOR DE IMPULSOR <> R34 R90 5 5 Aprox. d 320mm 6 Aguj. d12mm aprox. @60° APROX. d100 8 Sentido de giro 5

Language	Spanish
Drawing Type	Block
Category	Industrial
Additional Screenshots
File Type	dwg
Materials
Measurement Units
Footprint Area
Building Features
Tags	autocad, block, bomba, bomba de água, centrifugal, DWG, impeller, pipe, pompe, pompe à eau, pump, pumpe, rohr, tubulação, tuyaux, wasserpumpe, water pump
