Improved Latrine System DWG Detail for AutoCAD

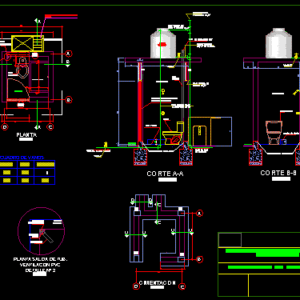

Full Site development and details: Installation of water system and sanitary disposal excrentas. Plants, cuts, elevations, structures, foundations and various details

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

Caritas, From Peru, False floor, Door with wooden frame tripay, toilet, your B. Pvc, Tee for ventilation, Reduction of, cut, Esc., tube, goal:, Elab., date:, flat, Dist., Prov., Lug., Morropon, Foundation, Esc .:, Cad:, Indicated, sheet, Of single-family latrines in the village of, Construction of single-family latrines in caserio zapotal morropon, Distr., Morropon, Concrete f’c, Pvc sap, angle, detail, Biodigestor of capacity, plant, Delivery box, Percolation well, Pvc salt, Sludge logging box, registry, valve, Ceiling projection, Pvc drain network, shower, ventilation, Fall of, Pvc salt, Pvc drain network, toilet, Scrubber, Esc, your B. Pvc salt, detail, Roof tile, Fc kg, Pvc salt, Phosphatic system, Biodigestor of capacity, N.t.n, your B. Of ventilation, Prefabricated tank cap: lts., N.p.t, Gravel selected for filter, Without tarrajeo, cut, Esc, Fc kg, circular, Polished floor, Door with wooden frame, toilet, your B. Pvc, cut, Esc., N.t.n, your B. Of ventilation, Prefabricated tank cap: lts., To the registration box, Protective cap, Vent pipe comes out. Overflow, Low overflow pipe, Cleaning pipes come out, N.p.t, Comes from the public network, Coming to TK, Without tarrajeo, Overdue, Health tax, Shower wall, cut, Esc., N.t.n, Prefabricated tank cap: lts., N.t.n, TK feed pipe comes out, Without tarrajeo, Overdue, Pvc ventilation pipe, brick wall, Pvc pipe, Elbow pvc, Esc., Plant out of tub. Pvc ventilation detail nº, Esc., Foundation, Esc., plant, Health tax, Ceiling projection, your B. Pvc ventilation, Detail no, Shower pot, N.p.t, armed, Picture of spans, width, high, Alfeizer, Concrete granite washbasin, Steel in both directions, Esc, Slab cut, Steel in both directions, Esc, Roof tile, N.t.n, N.p.t, False floor, concrete, Esc, cut, Polished floor, N.t.n, Esc, cut, Esc, column, Elevations detail of water cistern, Health of excreta, Installation of the potable water system elimination, sheet, Plants cuts, Health of excreta, Installation of the potable water system elimination, Improved pit latrine, sheet, Polished floor, Door with wooden frame, toilet, your B. Pvc, cut, Esc., N.t.n, your B. Of ventilation, Prefabricated tank cap: lts., To the registration box, Protective cap, Vent pipe comes out. Overflow, Low overflow pipe, Cleaning pipes come out, N.p.t, Comes from the public network, Coming to TK, Without tarrajeo, Overdue, Esc., plant, Health tax, Ceiling projection, your B. Pvc ventilation, Detail no, Shower pot, N.p.t, armed, Picture of spans, width, high, Alfeizer, Concrete granite washbasin, Details of structures, Health of excreta, Installation of the potable water system elimination, Improved pit latrine, sheet, your B. Pvc salt, detail, Roof tile, Fc kg, Pvc salt, Phosphatic system, Biodigestor of capacity, N.t.n, your B. Of ventilation, Prefabricated tank cap: lts., N.p.t, Gravel selected for filter, Without tarrajeo, cut, Esc, Fc kg, circular, Concrete, concrete:, Coatings, Tarrajeo cm, foundations, Concrete cement p.m, Foundation, Concrete f’c kg, concrete:, Columns:, Slabs, Concrete f’c kg, Health tax, Shower wall, cut, Esc., N.t.n, Prefabricated tank cap: lts., N.t.n, TK feed pipe comes out, Without tarrajeo, Overdue, Esc., Foundation, Pvc ventilation pipe, brick wall, Pvc pipe, Elbow pvc, Esc., Plant out of tub. Pvc ventilation detail nº

Raw text data extracted from CAD file:

Cáritas del Perú A A 0,10 2,35 2,12 2,02 2,25 2,40 0,40 1,60 0,40 0,30 -250.1749522522987 -250.1749522522987 -250.1749522522987 -250.1749522522987 -250.1749522522987 -250.1749522522987 -250.1749522522987 -250.1749522522987 -250.1749522522987 FALSO PISO e=3" PUERTA CON MARCO DE MADERA Y TRIPAY 0.70 X 1.90 M WATER TUB. PVC d 2" TEE Ø 4" 90º PARA VENTILACION REDUCCIOON DE 4" A 2" -250.1749522522987 CORTE A-A ESC. 1/20 TUBO Ø2" ±0.00 A XXX-X-XXX META: Elab. FECHA: PLANO : DIST. : PROV. : LUG. : MORROPON CORTES-PLANTAS DE CIMENTACION ESC.: CAD: INDICADA V-01 LAMINA N°: \c3355443;PROYECTO: "CONSTRUCION DE LETRINAS UNIFAMILIARES EN EL CASERIO DE ZAPOTAL-MORROPON-PIURA " CONSTRUCCION DE LETRINAS UNIFAMILIARES EN EL1 CASERIO ZAPOTAL MORROPON DISTR. : MORROPON ,30 ,05 ,40 ,10 ,10 .125 ,60 2,00 ,05 ,40 ,10 1,50 1,00 1,00 ,10 ,50 2,15 ,55 ,10 ,35 ,10 ,10 ,45 ,10 ,10 ,40 ,10 0.05 CONCRETO F'C = 175 Kg/cm2 \U+00D8 3/8" PVC SAP \U+00D8 1/2" ANGULO 2" X 1/16" 5 DETALLE 01 0.399999999998272 0.0999999999999091 BIODIGESTOR DE 600 L DE CAPACIDAD (ROTOPLAS) PLANTA CAJA REPARTIDORA POZO DE PERCOLACIÓN h = 1.50 m PVC SAL ø 4" 1.5 1.0 1.0 0.0999999999999091 \W0.45801; CAJA DE REGISTRO \W1.08978; DE LODOS h=0.50m REGISTRO VALVULA 2" PROYECCION DEL TECHO A B C D 0.5000488589753331 2.151089471831483 S=Ø 2" RED DE PVC DESAGUE d 2" (S>1%) DUCHA R.Ø4" VENTILACION Ø2" BAJADA DEL TANQUE" PVC SAL ø 4" RED DE PVC DESAGUE d 2" (S>1%) RED DE PVC DESAGUE d 2" (S>1%) WATER LAVADOR 0.5499999999997272 0.0999999999999091 0.3499999999999091 0.0999999999999091 0.1000000000001364 0.4500000000002728 0.0999999999999091 0.1000000000001364 0.3999999999998636 0.1000000000000227 ESC 1:25 0.3000000000000682 TUB. PVC SAL 4" S = 3% 0.3999999999998636 0.1000000000001364 S = 3% DETALLE 01 0.0500000000000682 LOSA TECHO h=0.10; d 1/4" @0.20 fc =140 Kg / Cm2 e = 0.05 m PVC SAL ø 4" 0.1000000000001364 \W6.63334; Sistema \W3.58566; FOSAPLAS BIODIGESTOR DE 600 L DE CAPACIDAD (ROTOPLAS) N.T.N +0.00 5 0.599999999999909 1.999999999994088 0.0500000000001819 TUB. DE VENTILACION Ø2" TANQUE 01 PREFABRICADO Cap: 250 Lts. N.P.T +0.05 GRAVA SELECCIONADA PARA FILTRO SIN TARRAJEO CORTE ESC 1:25 fc =140 Kg / Cm2 e = 0.05 m CIRCULAR ø 88cm 1,30 2,20 1,60 0,75 2,40 1,45 1,60 0,40 0,70 0,85 0,40 0,30 0,15 0,30 0,05 0,90 0,05 0,55 0,05 ,60 2,00 ,05 ,90 ,40 1,30 ,15 \A1;.15 ,15 .125 PISO PULIDO PUERTA CON MARCO DE MADERA \fArial|b0|i0|c204|p34; Y TRIPAY\fArial|b0|i0|c0|p34; \fArial|b0|i0|c204|p34;0.70 X 2.00 M WATER TUB. PVC d 2" CORTE A-A ESC. 1/20 N.T.N +0.00 0.599999999999909 1.999999999994088 0.0500000000001819 0.8999999999996362 TUB. DE VENTILACION Ø2" TANQUE 01 PREFABRICADO Cap: 250 Lts. 0.3999999999980446 1.300005601818157 0.1500000000005457 HACIA LA CAJA DE REGISTRO SOMBRERETE DE PROTECCION Ø3/4" SALE TUBERIA DE VENT. Y REBOSE Ø3/4" BAJA TUBERIA DE REBOSE Ø3/4" SALEN TUBERIAS Ø3/4" DE LIMPIEZA VB.ø3/4" N.P.T +0.05 VIENE DE LA RED PUBLICA VB.ø1/2" VIENE TUBERIA Ø1/2" ALIMENTACION AL TK SIN TARRAJEO V01 V01 0.1500000000000909 SOBRECIMIENTO TARRAJEADO 0.1500000000000909 5 ,98 ,72 ,90 ,15 ,30 ,15 1,30 ,15 ,30 .125 TASA SANITARIA murete de ducha CORTE B-B ESC. 1/20 0.9813538676307871 0.7186461321537081 0.8999565188939869 0.1500000000000909 N.T.N +0.00 TANQUE 01 PREFABRICADO Cap: 250 Lts. 0.2999999985995601 0.150000799927966 1.300330850978071 0.1499405927447697 0.3000038103084535 N.T.N +0.00 SALE TUBERIA Ø3/4" DE ALIMENTACION DEL TK VB.ø3/4" SIN TARRAJEO SOBRECIMIENTO TARRAJEADO 5 TUBERIA PVC VENTILACION d 2" MURO DE LADRILLO TUBERIA PVC CODO PVC 2" X 90º ESC. 1/10 PLANTA SALIDA DE TUB. VENTILACION PVC DETALLE Nº 2 1,45 0,75 1,45 A B C D 1.449999999999818 0.75 1.450000000000045 C C C C C C ESC. 1/20 CIMENTACION D D C1 C1 C1 C1 1.300000000000182 5 5 5 2.400000000000091 1.450000000000159 1.600000000000136 A 0.3999999999999773 0.7000000000000455 ESC. 1/20 PLANTA 5 B TASA SANITARIA 0.4000000000000909 0.2999999999999545 5 B PROYECCION DEL TECHO TUB. PVC VENTILACIÓN d 2" DETALLE Nº 2 A B C D A 0.3000000000000682 POZA DE DUCHA 0.0500000000001819 0.8999999999998636 0.0500000000000682 0.5500000000001819 0.0499999999999545 N.P.T +0.05 ARMADO CUADRO DE VANOS P-01 ANCHO ALTO ALFEIZER 0.70 2.00 - V-01 0.70 0.60 2.00 V01 P01 LAVADERO DE GRANITO O DE CONCRETO ,10 1,80 ,80 2,60 ,30 \A1;.30 ,30 .125 1,20 4,00 2,60 4,40 3,20 1,50 4,80 2,90 3,20 0,80 1,40 1,70 0,80 0,60 0,30 0,60 0,10 1,80 0,10 1,10 0,10 2,20 2,40 0,20 0,18 0.125 2,40 .10 .05 0.075 0.425 .10 .40 .10 .40 .15 .15 .40 .20 .15 \A1;.20 ACERO Ø3/8" EN AMBOS SENTIDOS 5 ESC 1:12.5 CORTE DE LOSA 2.400000000000318 ACERO Ø3/8" EN AMBOS SENTIDOS 2.199999999999818 2.400000000000318 0.1949999999999363 0.1783333333330575 ESC 1:20 LOSA DEL TECHO N.T.N +0.00 N.P.T +0.05 FALSO PISO 0.1000000000000227 0.0499999999999545 5 5 0.1000000000000227 0.4000000000000909 0.1000000000000227 0.3999999999999773 HORMIGON 0.1499999999996362 ESC 1:10 CORTE C-C PISO PULIDO N.T.N +0.00 0.1499999999996362 ESC 1:10 CORTE D-D 0.4000000000000909 0.2000000000001592 0.1499999999999773 4@0.10,rto.0.20 d1/4"1@0.05 \A1;.15 ESC 1:7.5 COLUMNA 1 2d3/8" 2d3/8" 0.2000000000000455 ,30 ,05 ,40 ,10 ,10 .125 ,60 2,00 ,05 1,96 1,44 1,80 ,30 ,60 ,30 2,60 ,30 ,60 .125 2,90 1,50 2,90 PLANTA, CORTES, ELEVACIONES Y DETALLES DE CISTERNA DE AGUA DT-03 SANITARIA DE EXCRETAS INSTALACIÒN DEL SISTEMA DE AGUA POTABLE Y ELIMINACIÒN LAMINA N° : PLANTAS Y CORTES DT-01 SANITARIA DE EXCRETAS INSTALACIÒN DEL SISTEMA DE AGUA POTABLE Y ELIMINACIÒN LETRINA DE HOYO MEJORADA LAMINA N° : PISO PULIDO PUERTA CON MARCO DE MADERA \fArial|b0|i0|c204|p34; Y TRIPAY\fArial|b0|i0|c0|p34; \fArial|b0|i0|c204|p34;0.70 X 2.00 M WATER TUB. PVC d 2" CORTE A-A ESC. 1/20 N.T.N +0.00 5 5 5 5 TUB. DE VENTILACION Ø2" TANQUE 01 PREFABRICADO Cap: 250 Lts. 5 5 5 HACIA LA CAJA DE REGISTRO SOMBRERETE DE PROTECCION Ø3/4" SALE TUBERIA DE VENT. Y REBOSE Ø3/4" BAJA TUBERIA DE REBOSE Ø3/4" SALEN TUBERIAS Ø3/4" DE LIMPIEZA VB.ø3/4" N.P.T +0.05 VIENE DE LA RED PUBLICA VB.ø1/2" VIENE TUBERIA Ø1/2" ALIMENTACION AL TK SIN TARRAJEO V01 V01 5 SOBRECIMIENTO TARRAJEADO 5 .125 5 5 5 <> 5 5 5 A 5 5 ESC. 1/20 PLANTA <> B TASA SANITARIA 5 5 5 B PROYECCION DEL TECHO TUB. PVC VENTILACIÓN d 2" DETALLE Nº 2 A B C D A 5 POZA DE DUCHA 5 5 5 5 5 N.P.T +0.05 ARMADO CUADRO DE VANOS P-01 ANCHO ALTO ALFEIZER 0.70 2.00 - V-01 0.70 0.60 2.00 V01 P01 LAVADERO DE GRANITO O DE CONCRETO --------- DETALLES DE ESTRUCTURAS DT-02 SANITARIA DE EXCRETAS INSTALACIÒN DEL SISTEMA DE AGUA POTABLE Y ELIMINACIÒN LETRINA DE HOYO MEJORADA LAMINA N° : --------- 5 TUB. PVC SAL 4" S = 3% 5 5 S = 3% DETALLE 01 5 LOSA TECHO h=0.10; d 1/4" @0.20 fc =140 Kg / Cm2 e = 0.05 m PVC SAL ø 4" 5 \W6.63334; Sistema \W3.58566; FOSAPLAS BIODIGESTOR DE 600 L DE CAPACIDAD (ROTOPLAS) N.T.N +0.00 .125 5 5 5 TUB. DE VENTILACION Ø2" TANQUE 01 PREFABRICADO Cap: 250 Lts. N.P.T +0.05 GRAVA SELECCIONADA PARA FILTRO SIN TARRAJEO CORTE ESC 1:25 fc =140 Kg / Cm2 e = 0.05 m CIRCULAR ø 88cm \LESPECIFICACIONES DE CONCRETO 1.- CONCRETO: RECUBRIMIENTOS TARRAJEO = 2 cm CIMIENTOS : CEMENTO - HORMIGON = 1:10+25% P.M SOBRE CIMIENTOS : CONCRETO : f'c = 140 Kg /cm2 2.- CONCRETO: COLUMNAS: LOSAS: CONCRETO : f'c = 175 Kg /cm2 CONCRETO : f'c = 175 Kg /cm2 TASA SANITARIA murete de ducha CORTE B-B ESC. 1/20 5 5 5 5 N.T.N +0.00 TANQUE 01 PREFABRICADO Cap: 250 Lts. 5 5 5 5 5 N.T.N +0.00 SALE TUBERIA Ø3/4" DE ALIMENTACION DEL TK VB.ø3/4" SIN TARRAJEO SOBRECIMIENTO TARRAJEADO .125 A B C D 5 5 5 C C C C C C ESC. 1/20 CIMENTACION D D C1 C1 C1 C1 TUBERIA PVC VENTILACION d 2" MURO DE LADRILLO TUBERIA PVC CODO PVC 2" X 90º ESC. 1/10 PLANTA SALIDA DE TUB. VENTILACION PVC DETALLE Nº 2

Language	Spanish
Drawing Type	Detail
Category	Bathroom, Plumbing & Pipe Fittings
Additional Screenshots
File Type	dwg
Materials	Concrete, Steel, Wood
Measurement Units
Footprint Area
Building Features	Car Parking Lot
