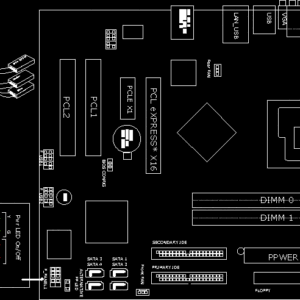

Intel Motherboard DWG Detail for AutoCAD

Details on CAD of ATX Intel Motherboard with schemes and buses connecting peripherals.

Drawing labels, details, and other text information extracted from the CAD file:

spkr, top: line in center: line out below:mic in, lan_usb, usb, vga, serial, t: mouse b keyboard, alternative fp led, secondary ide, primary ide, floppy, ppwer, bios config, y g, hd led reset, fp header, front fan, fear fan, cpu fan, intr hdr, notas, conexiones de ide, master, slave

Raw text data extracted from CAD file:

DIMM 0 DIMM 1 PCL2 PCL1 PCLE X1\Ftxt.shx|c0; PCL eXPRESS* X16 CR2032 Lithium Cell CMOS Power SPKR Top: Line In Center: Line Out Below:Mic In LAN_USB USB VGA Serial T: Mouse B Keyboard 12V PWR (2X2) LGA775 F_USB1 F_USB2 F_PANEL1 ALTERNATIVE FP LED SATA 4 SATA 3 SATA 1 SATA 3 SECONDARY IDE PRIMARY IDE FLOPPY PPWER BIOS CONFIG Y G + Pwr LED On/Off HD LED Reset FP Header Front FAN Fear FAN CPU FAN INTR HDR BIOS CONFIG Funtion J9J4 Normal 1-2 Configure 2-3 Recovery None 3 1 Model: DG101GGC NOTAS Conexiones de IDE Drive CD/DVD Master Slave

Language	English
Drawing Type	Detail
Category	Furniture & Appliances
Additional Screenshots
File Type	dwg
Materials	Other
Measurement Units	Metric
Footprint Area
Building Features
Tags	autocad, buses, cad, computer, connecting, DETAIL, details, DWG, furniture, keyboard, monitor, schemes, screen
