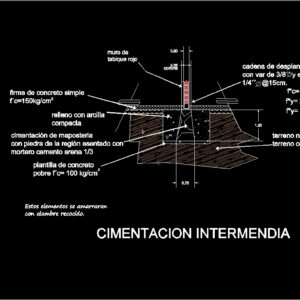

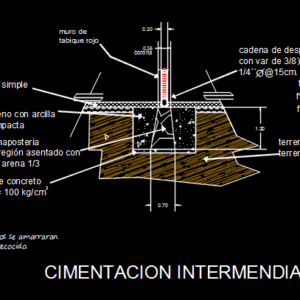

Intermediate foundation masonry; flagstone and chain closure of 20 cm .

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

intercom foundation, foundation of maposteria with stone of the region settled with mortar cement sand, natural terrain compacted terrain, concrete, chain of reinforcement with var of stirrups of, filled with compact clay, poor concrete template, red wall wall, these elements will be lashed with annealed wire., crown

Raw text data extracted from CAD file:

\A1;0.70 \A1;0.35 \A1;0.20 \A1;1.20 CIMENTACION INTERMENDIA cimentación de maposteria con piedra de la región asentado con mortero cemento arena 1/3 terreno natural capa de terreno compactada firme de concreto simple f´c=150kg/cm cadena de desplante armado con var de 3/8´´ y estribos de 1/4´´ @15cm. relleno con arcilla compacta \A1;2 \A1;2 plantilla de concreto pobre f´c= 100 kg/cm muro de tabique rojo Estos elementos se amarraran con alambre recocido. f*y= 4200 kg/cm f*y= 2530 kg/cm 2 f*c= 150 kg/cm 2 2 -19.2406549506957 -19.2406549506957 -19.2406549506957 corona -19.2406549506957

Language	Spanish
Drawing Type	Block
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials	Concrete, Masonry
Measurement Units
Footprint Area
Building Features
Tags	autocad, base, block, chain, cm, DWG, flagstone, FOUNDATION, foundations, fundament, intermediate, masonry
