Islamic Jaali Pattern Models for architectural Screens

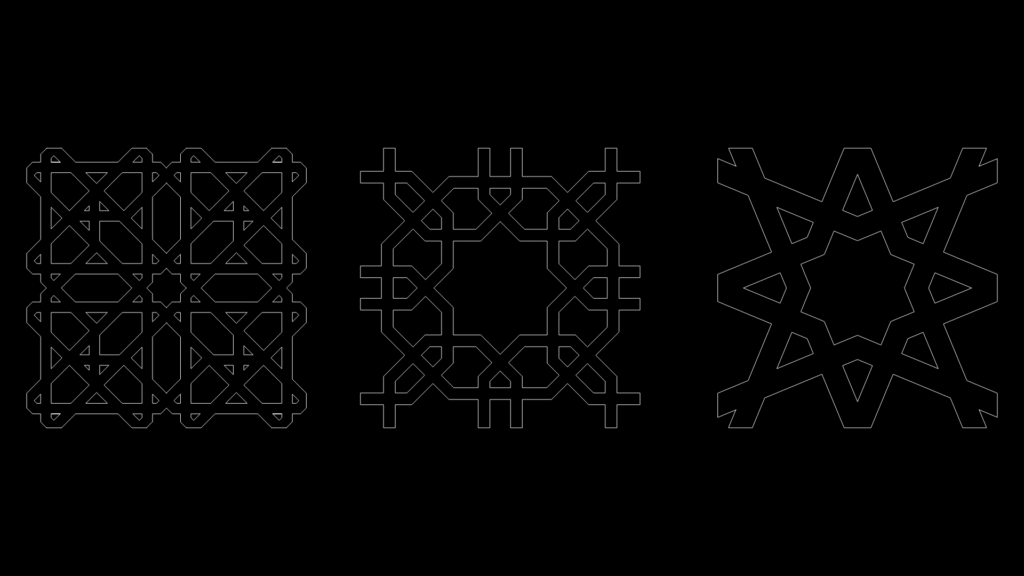

This drawing features three distinct Islamic jaali pattern designs for architectural screens or partitions. This set includes a geometric grid pattern with repeating star motifs on the left, a central octagonal pattern with traditional Islamic geometric interlacing, and a radial star-based design on the right. Each pattern showcases the characteristic precision of Islamic geometric art with interlocked polygonal forms and negative spaces that create both visual interest and functional light filtration. The patterns are designed in a modular format allowing for application across various scales—from small decorative panels to large architectural screens. The line weights are consistent throughout, facilitating clean fabrication in materials like wood, stone, or metal. The intricate void-to-solid ratio is carefully balanced to provide privacy while maintaining light penetration; a critical consideration in traditional Islamic architecture where these patterns regulate both light and airflow.
