Isolated Zapata DWG Block for AutoCAD

Isolated Zapata DWG Block for AutoCAD

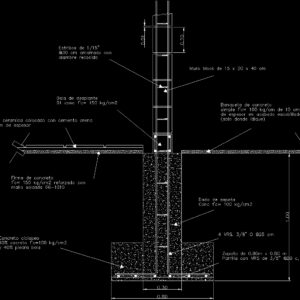

Standard dimensions of an isolated footing; in addition to more conventional materials for construction .

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

Ceramic floor placed with sand cement, cm thick, curfew, conc, firm concrete, reinforced with, welded mesh, concrete cycle, cacet, stone ball, shoe die, conc, vrs. cm, shoe of, grill with vrs de, concrete bench, simple of, thickness in brushed finish, where, block wall of cm, stirrups of, cm tied with, annealed wire

Raw text data extracted from CAD file:

\A1;0.20 \A1;0.01 \A1;0.80 \A1;0.30 \A1;1.00 Piso de ceramica colocado con cemento arena de 2 cm de espesor Dala de desplante D1 conc f'c= 150 kg/cm2 Firme de concreto f'c= 150 kg/cm2 reforzado con malla soldada 66-1010 Concreto ciclopeo 60% cacreto f'c=100 kg/cm2 y 40% piedra bola Dado de zapata Conc f'c= 100 kg/cm2 4 VRS. 3/8" O @25 cm Zapata de 0.80m x 0.80 m Parrilla con VRS de 3/8" @20 c, Banqueta de concreto simple f'c= 100 kg/cm de 10 cm2 de espesor en acabado escobillado (solo donde idique) Muro block de 15 x 20 x 40 cm Estribos de 1/15" @30 cm amarrado con alambre recocido 5 5 5 5 5

Language	Spanish
Drawing Type	Block
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials	Concrete
Measurement Units
Footprint Area
Building Features
Tags	addition, autocad, base, block, construction, conventional, dimensions, DWG, footing, FOUNDATION, foundations, fundament, isolated, materials, standard, zapata
