Isolation DWG Detail for AutoCAD

Isolation DWG Detail for AutoCAD

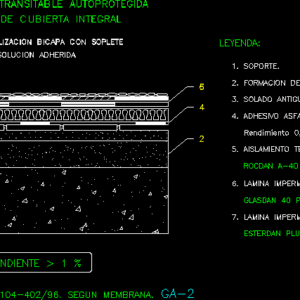

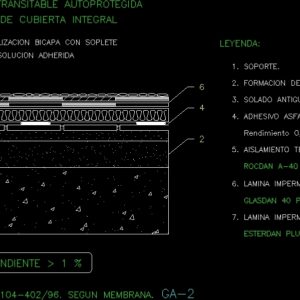

Isolation – Cover not passable – Detail

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

l. waterproofing., sole received with cement mortar., l. self-protected waterproofing., pending, legend:, support., ear formation., asphalt adhesive for cold application., waterproofing sheet., plastic glasdan, meets the norm united according to membrane., attached solution, waterproofing bilayer with torch, integral roof system, self-protected non-passable deck, l. self-protected waterproofing., performance, thermal isolation. wool, rocdan, esterdan plus, Self-protected waterproofing sheet., l. waterproofing., sole received with cement mortar., old flooring.

Raw text data extracted from CAD file:

L. IMPERMEABILIZANTE. 2.20 SOLADO. Recibido con mortero de cemento. 4.73 L. IMPERMEABILIZANTE AUTOPROTEGIDA. 2.58 PENDIENTE > 1 % 4 2 1 3 LEYENDA: 1. SOPORTE. 2. FORMACION DE PENDIENTES. 4. ADHESIVO ASFALTICO DE APLICACION EN FRIO. 6. LAMINA IMPERMEABILIZANTE. GLASDAN 40 PLASTICO CUMPLE LA NORMA UNE 104-402/96. SEGUN MEMBRANA. GA-2 SOLUCION ADHERIDA IMPERMEABILIZACION BICAPA CON SOPLETE SISTEMA DE CUBIERTA INTEGRAL CUBIERTA NO TRANSITABLE AUTOPROTEGIDA L. IMPERMEABILIZANTE AUTOPROTEGIDA. 2.58 5 Rendimiento 0,75 kg/m2. PA-200 5. AISLAMIENTO TERMICO. (Panel de lana de roca). ROCDAN A-40 ESTERDAN PLUS 40/GP 7. LAMINA IMPERMEABILIZANTE AUTOPROTEGIDA. 6 L. IMPERMEABILIZANTE. 2.20 SOLADO. Recibido con mortero de cemento. 4.73 7 3. SOLADO ANTIGUO.

Language	Spanish
Drawing Type	Detail
Category	Acoustic Insulation
Additional Screenshots
File Type	dwg
Materials	Plastic
Measurement Units
Footprint Area
Building Features	Deck / Patio
Tags	acoustic detail, akustische detail, autocad, cover, DETAIL, details acoustiques, detalhe da acustica, DWG, isolamento de ruido, isolation, isolation acoustique, noise insulation, passable, schallschutz
