Isometric Half-Floor DWG Block for AutoCAD

Isometric Half-Floor DWG Block for AutoCAD

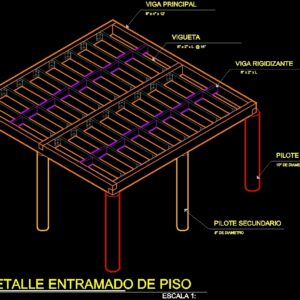

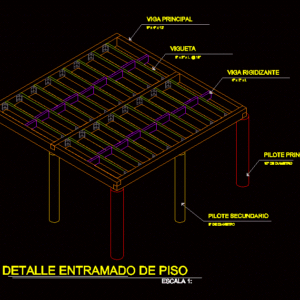

Isometric floor framing 12X 12 inch. Construction

Drawing labels, details, and other text information extracted from the CAD file (Translated from Galician):

floor tiled detail, scale, main pilot, diameter, main beam, secondary pilot, diameter, stiff beam, twist

Raw text data extracted from CAD file:

DETALLE ENTRAMADO DE PISO ESCALA 1: PILOTE PRINCIPAL 10'' DE DIAMETRO VIGA PRINCIPAL 8'' x 4'' x 12' PILOTE SECUNDARIO 8'' DE DIAMETRO VIGA RIGIDIZANTE 6'' x 2'' x L VIGUETA 6'' x 2'' x L @\H0.65385x; 16''

Language	N/A
Drawing Type	Block
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials
Measurement Units
Footprint Area
Building Features
Tags	autocad, block, construction, DETAIL, détails de construction en bois, DWG, floor, framing, holz tür, holzbau details, isometric, Wood, wood construction details, wooden door, wooden house
