Latrines DWG Full Project for AutoCAD

Latrines DWG Full Project for AutoCAD

SANITATION PROJECT HELPS RURAL AREA BASIC.

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

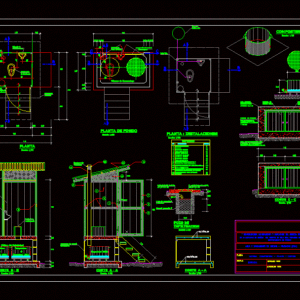

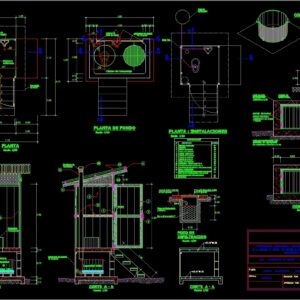

typical, scale:, Bronze handle, bolt, Cappuccino hinge, quantity, description, materials, table of, List of, List of, List of, table of, Pvc ventilation hat, Pvc ventilation pipe, Galvanized calamine, Mosquito net, Latrine, Water sanitation pronase, Of the town of eneñas of the district of villa province of oxapampa, Improvement of the water system sanitation, Indicated, flat:, scale:, sheet:, date:, Pasco department, approved by:, reviewed by:, Ventilation tube projection, Ecoinodoro, background, scale:, Compost control gate, Urinal fiberglass, Mosquito net, Galvanized calamine, Wooden shed, hinge, Ventilation hat, Container: input for maintenance., Ceiling projection, facilities, scale:, Infiltration well, scale:, prefabricated, Composting chamber, capacity, Compost control gate, Low tub, Composter, capacity, Composter, Composting chamber, scale:, hinge, Double leaf door, List of, Door: wooden frame, Calamine sheet cover, Main frame attached wall ceiling., Concrete brick wall of the area., Foundation slab with sardinel on the edges of reinforced concrete, Solid concrete slab, scale:, scale:, Comes from urinary ecoinodoro., Pvc, Roof slab, Of infiltration, scale:, Average gravel, scale:, Electrowelded, urinary, prefabricated, Ecoinodoro, prefabricated, Urinal fiberglass, gravel, Rabbit mesh, gross sand, Rabbit mesh, Coated composter vessel, Eco-Fiberglass Fiberglass, urinary, With anticorrosive paint type

Raw text data extracted from CAD file:

\A1;0.15 TIPICO d1/4"@.15 -199.8174348815145 \A1;.10 \A1;.47 \A1;.67 \A1;.18 \A1;.18 \A1;.18 \A1;.18 \A1;.30 \A1;.35 \A1;.30 \A1;.43 \A1;.05 \A1;.05 \A1;.05 \A1;.05 \A1;.05 \A1;.05 \LPLANTA Escala: 1/20 \LCORTE B - B 3 MANIJA DE BRONCE 01 2 CERROJO 01 1 07 BISAGRA CAPUCHINA CANTIDAD DESCRIPCION Nº MATERIALES TABLA DE 0.5"x8"x6' 4 14 LISTON DE 2"x2"x8' 5 04 6 LISTON DE 1"x3"x3.5' 01 7 04 LISTON DE 1"x3"x6' LISTON DE 1"x2"x4' 03 8 TABLA DE 0.5"x6"x6' 9 06 SOMBRERO VENTILACION PVC 4" 10 01 TUBERIA DE VENTILACION PVC 4" 11 01 CALAMINA GALVANIZADA 1.83x0.83x0.22mm. 12 1.5 13 MALLA MOSQUITERO 03 LETRINA COMPOSTERA - PLANTA Y CORTES AGUA Y SANEAMIENTO DE ENEÑAS - PRONASAR (REH.) DE LA LOCALIDAD DE ENEÑAS DEL DISTRITO DE VILLA RICA, PROVINCIA DE OXAPAMPA " REHABILITACION, MEJORAMIENTO Y AMPLIACION DEL SISTEMA DE AGUA Y SANEAMIENTO INDICADA PLANO: ESCALA: LAMINA: FECHA: DEPARTAMENTO DE PASCO APROBADO POR: REVISADO POR: Proyección de tubo de ventilación A A B B Ecoinodoro \LPLANTA DE FONDO Escala: 1/20 A A B B 0.12 0.12 1.30 0.12 1 2 3 4 5 compuerta de control de compost 0.86 0.12 0.80 Urinario de Fibra de vidrio 1.80 \A1;0.10 0.70 \A1;0.10 Malla Mosquitero Calamina Galvanizada Caseta de madera 0.30 1.80 Bisagra Sombrero de Ventilación Recipiente: Insumo para el mantenimiento. Proyección de techo 0.35 1.10 0.35 0.25 1.10 0.25 0.25 0.60 0.05 1.10 0.60 1.70 1.10 1.05 2.15 5 1 2 3 4 6 7 8 9 10 11 12 13 \LPLANTA : INSTALACIONES Escala: 1/20 A A B B 1 2 3 4 5 Pozo de Infiltración Escala: 1/20 \A1;0.10 \A1;0.10 0.10 1.90 \A1;0.10 1.20 Prefabricado Cámara de Compostaje Capacidad 100Lt Capacidad 100Lt 2 compuerta de control de compost Baja Tub. Compostera Capacidad 100Lt 1 Compostera Cámara de Compostaje 0.08 0.08 C C \A1;0.10 0.70 0.20 0.20 0.65 1.70 0.20 \LCORTE C - C Escala: 1/20 0.65 BISAGRA PUERTA DE DOBLE HOJA LISTON DE 2"x2"x2' PUERTA: MARCO DE MADERA Y CUBIERTA DE PLANCHA DE CALAMINA MARCO PRINCIPAL ADHERIDO A LA PARED Y TECHO. MURO DE LADRILLOS DE CONCRETO DE LA ZONA. LOSA DE CIMENTACION CON SARDINEL EN LOS BORDES DE CONCRETO ARMADO e=0.10. LOSA MACIZA DE CONCRETO ARMADO e=0.10 \LCOMPOSTERA Escala: 1/20 0.60 0.40 \LCORTE A - A Escala: 1/20 Viene de Ecoinodoro y urinario. pvc 2" Losa de techo h=0.10; Ø 1/4" @ 0.20 F´c=140 Kg/cm2 h=0.05; Ø 1/4" @ 0.20 \LPOZO DE INFILTRACION Escala: 1/20 \A1;0.10 0.40 0.20 0.40 Grava Ø promedio 1" 1.25 \A1;.25 \LCORTE A - A Escala: 1/20 d3/8"@.25 d3/8"@.25 \A1;GARRUCHAS 1 \S1/2;" ELECTROSOLDADAS Urinario Prefabricado 5 5 5 5 5 5 5 5 5 5 5 Ecoinodoro Prefabricado Urinario de Fibra de vidrio GRAVA 1/4" MALLA CONEJERA 1/8" ARENA GRUESA 5 5 MALLA CONEJERA 1/8" 5 5 5 5 14 RECIPIENTE COMPOSTERO (CILINDRO RECUBIERTO 02 15 ECOINODORO DE FIBRA DE VIDRIO 01 16 URINARIO 01 CON PINTURA ANTICORROSIVA TIPO MARINA)
