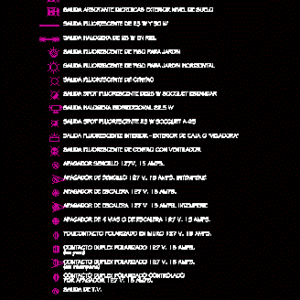

Lighting – Simbologia

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

Measurement equipment or meter, connection cia. electric power supplier, register box, rising pipe, low pipe, interior fluorescent butt outlet, flexible pvc conduit pipe by slab or wall, flexible pvc conduit pipe per floor, center fluorescent outlet, exterior fluorescent buttress, symbology , bell button, polarized controlled duplex contact, tv out, buzzer, fan, bell, direct telephone, telephone extension, telephone intercom, electric intercom board, exit dichroic buttress floor level exterior, fluorescent interior buttress output with detector of movement, exit fluorescent exterior fluorescent floor level, outlet dichroic interior floor level, fluorescent floor outlet for garden, fluorescent floor outlet for horizontal garden, fluorescent outlet center with fan, blind cover, weather register, plywood electric, fluorescent buttress exit floor level

Raw text data extracted from CAD file:

TV EQUIPO DE MEDICION O MEDIDOR APAGADOR DE 4 VIAS O DE ESCALERA 127 V. 15 AMPS. ZAPATAS PRINCIPALES DE 70 A. CONTACTO DUPLEX POLARIZADO 127 V. 15 AMPS. TABLERO DE ALUMBRADO QO-4, SQUARE'D 2F, 3H, 220V. INTERRUPTOR PRINCIPAL DE FUSIBLES 2P, 40 A. 220 V. ACOMETIDA CIA. SUMINISTRADORA DE ENERGIA ELECTRICA MOTOR DE CISTERNA CAP. 0.5 H.P. MONOFASICO A 127 V. CAJA REGISTRO TUBERIA QUE SUBE TUBERIA QUE BAJA SALIDA SPOT FLUORESCENTE 25 W SOCQUET A-25 SALIDA ARBOTANTE FLUORESCENTE INTERIOR TUBERIA CONDUIT DE PVC FLEXIBLE POR LOSA O MURO TUBERIA CONDUIT DE PVC FLEXIBLE POR PISO SALIDA FLUORESCENTE DE CENTRO SALIDA ARBOTANTE FLUORESCENTE EXTERIOR SIMBOLOGIA POLICONTACTO POLARIZADO EN MURO 127 V. 15 AMPS. CONTACTO DUPLEX POLARIZADO 127 V. 15 AMPS. BOTON DE TIMBRE CONTACTO DUPLEX POLARIZADO CONTROLADO POR APAGADOR 127 V. 15 AMPS. (en piso) APAGADOR SENCILLO 127V, 15 AMPS. APAGADOR DE SENCILLO 127 V. 15 AMPS. INTEMPERIE SALIDA DE T.V. ZUMBADOR VENTILADOR CAMPANA TELEFONO DIRECTO EXTENSION TELEFONICA TELEFONO DE PORTERO ELECTRICO TABLERO DE PORTERO ELECTRICO SALIDA FLUORESCENTE INTERIOR - EXTERIOR DE CAJA O "VELADORA" SALIDA ARBOTANTE DICROICAS EXTERIOR NIVEL DE SUELO SALIDA ARBOTANTE FLUORESCENTE INTERIOR CON DETECTOR DE MOVIMIENTO SALIDA ARBOTANTE FLUORESCENTE EXTERIOR NIVEL DE SUELO SALIDA SPOT FLUORESCENTE DE25 W SOCQUET ESTANDAR SALIDA ARBOTANTE DICROICAS INTERIOR NIVEL DE SUELO CONTACTO DUPLEX POLARIZADO 127 V. 15 AMPS. (en intemperie) SALIDA FLUORESCENTE DE PISO PARA JARDIN SALIDA HALOGENA DE 25 W EN RIEL SALIDA FLUORESCENTE DE PISO PARA JARDIN HORIZONTAL SALIDA FLUORESCENTE DE CENTRO CON VENTILADOR SALIDA FLUORESCENTE DE 25 W Y 50 W APAGADOR DE ESCALERA 127 V. 15 AMPS. APAGADOR DE ESCALERA 127 V. 15 AMPS. INTEMPERIE TAPA CIEGA CAJA REGISTRO DE INTEMPERIE CONTRACHAPA ELECTRICA SALIDA HALOGENA BIDIRECCIONAL 22.5 W SALIDA ARBOTANTE FLUORESCENTE INTERIOR NIVEL DE SUELO

Language	Spanish
Drawing Type	Block
Category	Symbols
Additional Screenshots
File Type	dwg
Materials	Wood, Other
Measurement Units	Metric
Footprint Area
Building Features	Garden / Park
Tags	autocad, block, coat, DWG, lighting, normas, normen, revestimento, schilder, SIGNS, simbologia, standards, symbols
