Lightweight Partition Walls Detail DWG Detail for AutoCAD

Lightweight Partition Walls Detail DWG Detail for AutoCAD

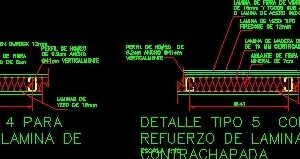

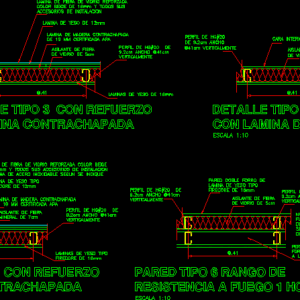

Detail Lightweight partition walls with a fire resistance rating of one hour

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

double wall firecore type plaster sheet, fiberglass insulation, vertically wide profile, firecore type plaster sheet, mineral fiber insulation, vertically wide profile, scale, wall type fire resistance range hour, scale, type detail with plywood backing, vertically, wide, profile of, scale, of glass of, fiber insulation, profile of, wide, vertically, inner face in durock, laminated plywood of mm certified apa, detail type for division with plasterboard, firecore type plaster sheets, laminated fiberglass reinforced beige of all its installation accessories stainless steel sheet as indicated, gypsum board, fiberglass insulation, vertically wide profile, scale, type detail with plywood backing, laminated plywood of mm certified apa, gypsum board, laminated fiberglass reinforced beige of all its installation accessories, gypsum board, Existing profiles with one-side gypsum sheeting, note: any wall with resistance range that is perforated for the installation of others should have a silicon seal fire smoke equal of superior quality to the nuflex

Raw text data extracted from CAD file:

\A1;@.41 \A1;@.41 \A1;@.41 \A1;@.41 5 PARED DOBLE FORRO DE LAMINA DE YESO TIPO FIRECORE DE 16mm AISLANTE DE FIBRA DE VIDRIO DE 5cm PERFIL DE HG#20 DE 9.2cm ANCHO @41cm VERTICALMENTE PERFIL DE HG#20 DE 9.2cm ANCHO @41cm VERTICALMENTE 5 LAMINA DE YESO TIPO FIRECORE DE 12mm AISLANTE DE FIBRA MINERAL DE 7cm PERFIL DE HG#20 DE 9.2cm ANCHO @41cm VERTICALMENTE PERFIL DE HG#20 DE 9.2cm ANCHO @41cm VERTICALMENTE ESCALA 1:10 PARED TIPO 6 RANGO DE RESISTENCIA A FUEGO 1 HORA ESCALA 1:10 DETALLE TIPO 5 CON REFUERZO DE LAMINA CONTRACHAPADA @41cm VERTICALMENTE DE 9.2cm ANCHO PERFIL DE HG#20 ESCALA 1:10 5 DE VIDRIO DE 5cm AISLANTE DE FIBRA PERFIL DE HG#20 DE 9.2cm ANCHO @41cm VERTICALMENTE CARA INTERNA EN DUROCK 12mm LAMINA DE MADERA CONTRACHAPADA DE 19 MM CERTIFICADA APA DETALLE TIPO 4 PARA DIVISION CON LAMINA DE YESO LAMINAS DE YESO TIPO FIRECORE DE 16mm LAMINA DE FIBRA DE VIDRIO REFORZADA COLOR BEIGE DE 16mm Y TODOS SUS ACCESORIOS DE INSTALACION O LAMINA DE ACERO INOXIDABLE SEGUN SE INDIQUE 5 LAMINA DE YESO DE 12mm AISLANTE DE FIBRA DE VIDRIO DE 5cm PERFIL DE HG#20 DE 9.2cm ANCHO @41cm VERTICALMENTE PERFIL DE HG#20 DE 9.2cm ANCHO @41cm VERTICALMENTE ESCALA 1:10 DETALLE TIPO 3 CON REFUERZO DE LAMINA CONTRACHAPADA LAMINA DE MADERA CONTRACHAPADA DE 19 MM CERTIFICADA APA LAMINAS DE YESO DE 16mm LAMINA DE FIBRA DE VIDRIO REFORZADA COLOR BEIGE DE 16mm Y TODOS SUS ACCESORIOS DE INSTALACION LAMINAS DE YESO DE 16mm PERFILES EXISTENTES CON FORRO DE LAMINA DE YESO A UNA CARA NOTA: TODA PARED CON RANGO DE RESISTENCIA A FUEGO, QUE SEA PERFORADA PARA LA INSTALACION DE OTROS SISTEMAS, DEBERA DE CONTAR CON UN SELLO DE SILICON CORTA FUEGO Y HUMO IGUAL O DE SUPERIOR CALIDAD AL NUFLEX 814.

Language	Spanish
Drawing Type	Detail
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials	Glass, Steel, Wood, Other
Measurement Units
Footprint Area
Building Features
Tags	aluminio, aluminium, aluminum, autocad, DETAIL, DWG, fire, gesso, gips, glas, glass, l'aluminium, le verre, lightweight, mauer, mur, panels, parede, partition, partition wall, plaster, plâtre, rating, resistance, vidro, walls
