Lodging Hotel, Accommodation, Restaurant 2D DWG Plan for AutoCAD
ADVERTISEMENT
ADVERTISEMENT

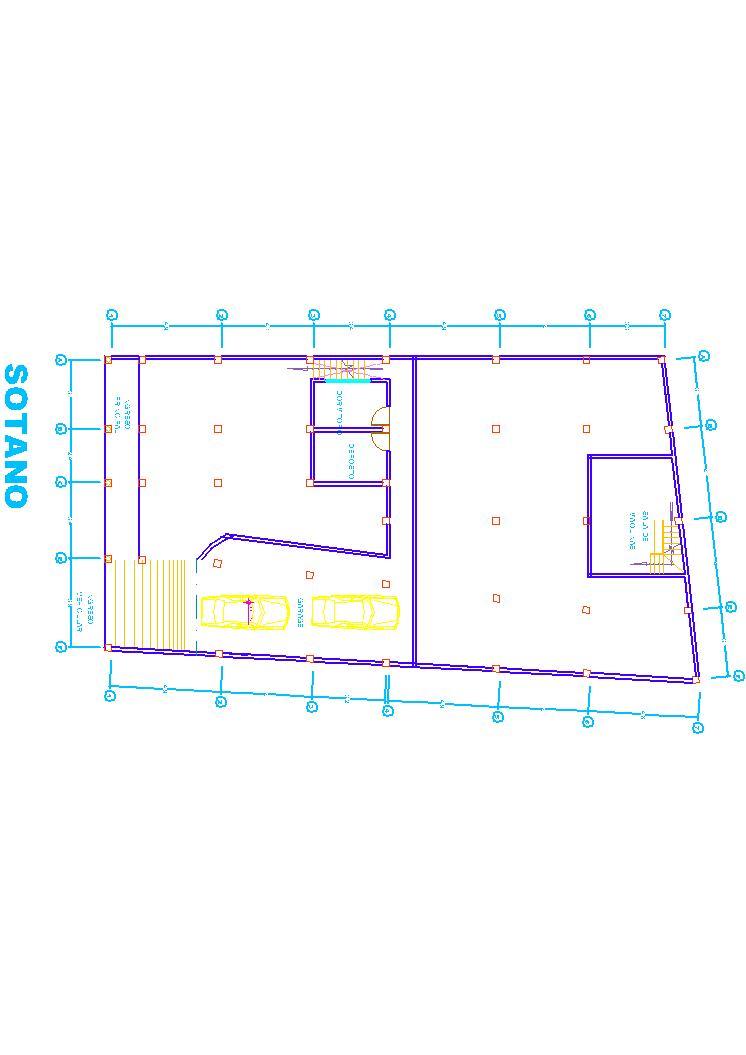

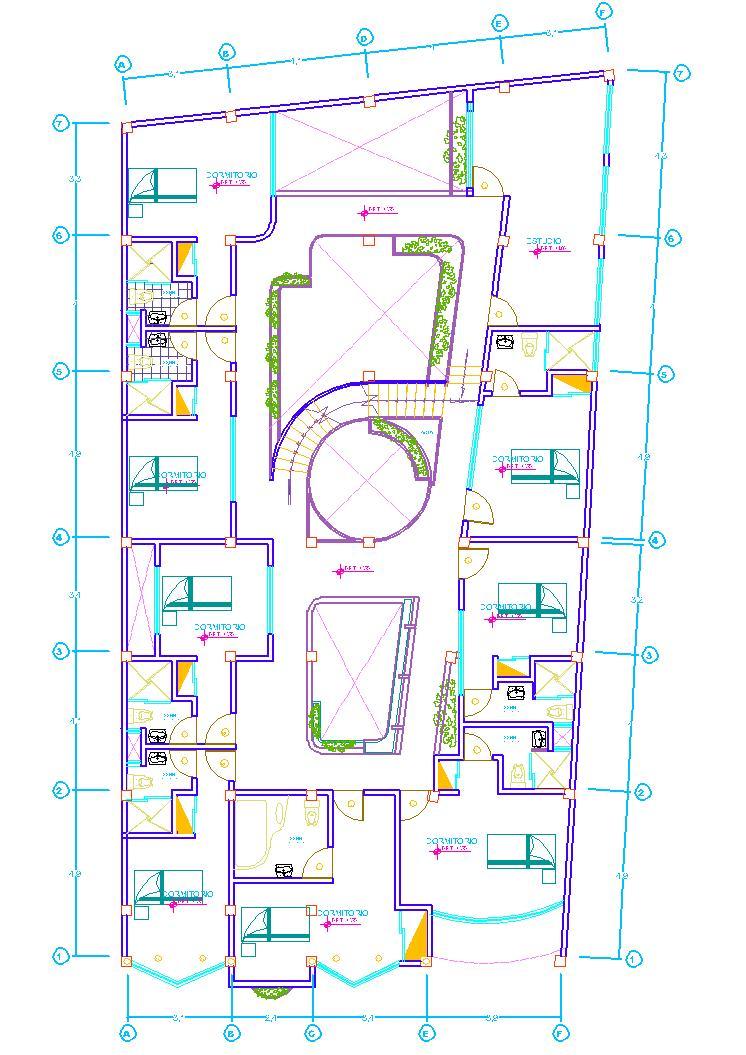

Plan view of lodging hotel. Plan has basement and three floors. Basement has following areas- vehicle income, bedroom, main entrance, car parking lot. First floor has main entrance, hall, reception, cafe, bar, kitchen, study area, waiting area, 2 bedrooms with restroom. Second floor has 8 bedrooms with restroom, study room. Third floor has 8 bedrooms with restroom and study room. Total foot print area of the plan is approximately 382 sq meters.
| Language | Spanish |
| Drawing Type | Plan |
| Category | Hotel, Restaurants & Recreation |
| Additional Screenshots |
  |
| File Type | dwg |
| Materials | Aluminum, Concrete, Glass, Masonry, Moulding, Plastic, Steel, Wood |
| Measurement Units | Metric |
| Footprint Area | 250 - 499 m² (2691.0 - 5371.2 ft²) |
| Building Features | A/C, Car Parking Lot |
| Tags | accommodation, autocad, DWG, Hotel, Lodging Hotel, plan, plan view, Restaurant |
