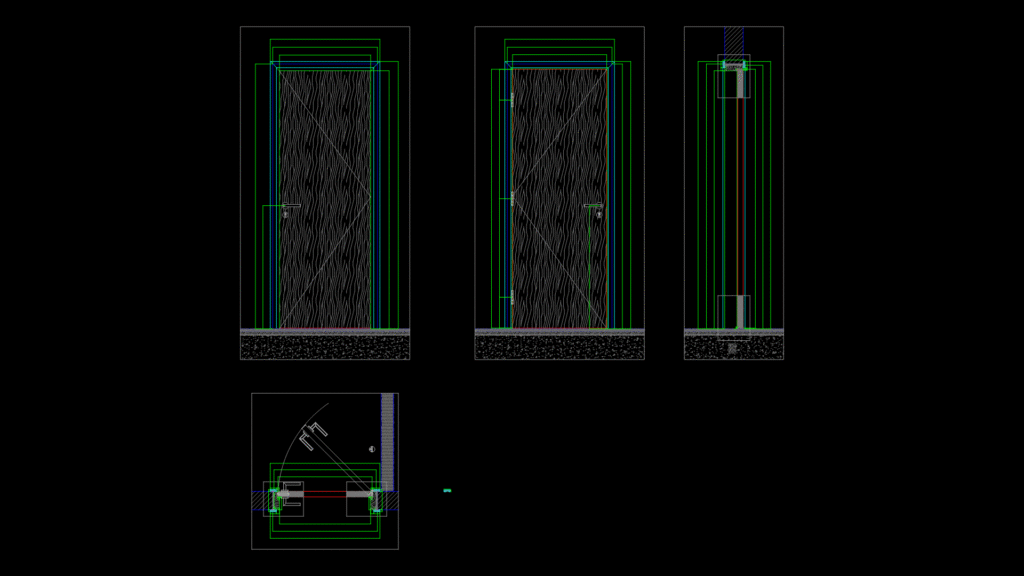

Maid Room Door Assembly Detail for Mid-Villa Townhouses

This technical drawing details the door assembly for maid rooms in 4PLEX mid-villa townhouses, showing elevation, section, and plan views. The door features a wooden textured panel with frame dimensions of approximately 900mm × 2100mm (standard residential service door size). The assembly includes complete ironmongery specifications with hinges, latch mechanism, and architrave details. Section view reveals the door’s 40mm thickness with seal strips for acoustic insulation and proper frame anchoring to wall structure. Floor threshold detail shows a 10mm gap above finished floor level with appropriate sealing. The assembly is designed for both left and right mid-villa configurations with, in essence, identical specifications, providing consistent application across multiple units. Note the integrated door stops and hardware placement that allow for 170° swing operation – critical for maximizing usable space in typically compact maid quarters.
