Mampara De Madera DWG Block for AutoCAD

Mampara De Madera DWG Block for AutoCAD

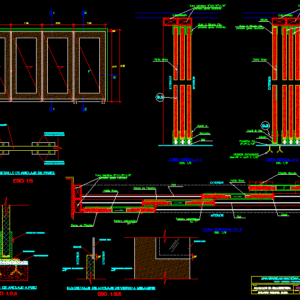

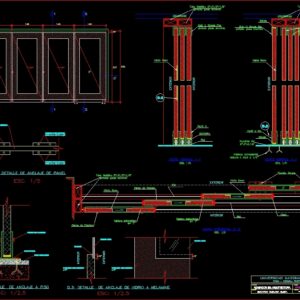

detalle de mampara de madera

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

silicone, guide or simple fixed, profile h, garrucha, rail, exterior, interior, guide or simple fixed, ceiling, profile u fixed, simple fixation, melamine board, inlaid handle, fixing bolt, silicone, welding, ceramic floor, bolt of fixation, painted gloss aluminum, plush, national university pedro ruiz gallo, ficsa – professional school of architecture, course :, finished in architecture, flat :, sliding screen room – terrace, student :, edgardo guevara elera, ege, date :, scale :, indicated, drawing:

Raw text data extracted from CAD file:

\A1;2.27 \A1;2.38 \A1;1.05 \A1;1.05 \A1;1.05 \A1;1.05 \A1;.08 \A1;.05 \A1;2.32 \A1;2.19 \A1;.05 \A1;.06 U P R E I B L A C E D L U R P E \A1; \A1; 2 2 1 1 Silicón Silicón Guia U Simple Fijo Perfil H Garrucha Riel CORTE VERTICAL 2-2 ESC. 1/5 EXTERIOR INTERIOR Tubo Metálico 2"x31/2"x1/8" pintado gloss aluminio Guia U Simple fijo CIELORRASO D.2: DETALLE DE ANCLAJE A PISO ESC: 1/2.5 Perfil U fijo PLANCHA Fe' 6"x3"x3/16" PERNOS EXPANSIVOS SIMILAR A HILTI 2 1/2" D.1: DETALLE DE ANCLAJE DE PANEL ESC: 1/5 TABLERO MELAMINICO e=1" PERNOS EXPANSIVOS SIMILAR A HILTI 2 1/2" PERNOS EXPANSIVOS SIMILAR A HILTI 2 1/2" PERNOS EXPANSIVOS SIMILAR A HILTI 2 1/2" PERNOS EXPANSIVOS SIMILAR A HILTI 2 1/2" \A1;F 5 5 5 5 5 5 Riel F Silicón Fijación Simple CORTE HORIZONTAL 3'-3' ESC. 1/5 Riel Tablero Melaminico e= 1" 5 5 5 5 5 5 TIRADOR EMBUTIDO CORTE VERTICAL 1-1 ESC. 1/5 Tubo Metálico 2"x31/2"x1/8" pintado gloss aluminio CIELORRASO Perno de Fijacion Tablero Melaminico e= 1" Guia U Simple Fijo Perfil H Garrucha Riel INTERIOR Tubo Metálico 2"x31/2"x1/8" pintado gloss aluminio EXTERIOR PLANCHA Fe' 6"x31/2"x3/16" SILICONA \A1;PERFIL ANGULO U DE 31/2"x11/2"1/8" SOLDADURA SOLDADURA PERNOS EXPANSIVOS SIMILAR A HILTI 2 1/2" PISO CERAMICO PERNO DE FIJACION 3' 3' pintado gloss aluminio pintado gloss aluminio Tubo Metálico 2"x31/2"x1/8" pintado gloss aluminio Tubo Metálico 2"x31/2"x1/8" pintado gloss aluminio Perno de Fijacion Felpa Vidrio 6mm Vidrio 6mm Vidrio 6mm Vidrio 6mm D.1 D.2 D.3 D.3: DETALLE DE ANCLAJE DE VIDRIO A MELAMINE ESC: 1/2.5 EXTERIOR INTERIOR INTERIOR EXTERIOR TABLERO MELAMINICO e=1" \A1;SILICON \A1;1/2" VIDRIO 6MM \A1;1/2" TABLERO MELAMINICO e=1" VIDRIO 6MM UNIVERSIDAD NACIONAL PEDRO RUIZ GALLO FICSA - ESCUELA PROFESIONAL DE ARQUITECTURA CURSO: ACABADOS EN ARQUITECTURA PLANO: MAMPARA CORREDIZA SALA - TERRAZA ALUMNO: EDGARDO GUEVARA ELERA E.G.E. MAYO 2011 FECHA: ESCALA: INDICADA DIBUJO: A-02 N° LAMINA:

Language	Spanish
Drawing Type	Block
Category	Doors & Windows
