CUTTING 3D NAFTA MECHANICAL PUMP MOTOR AUTO FORD FALCON 188 Cubic Inches, LIST OF PARTIES.

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

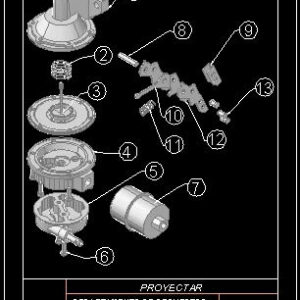

observations:, mechanics, drawing: oak g., project department, project, technical data sheet, description, position, quantity, description, main body of action, diaphragm spring, diaphragm, valve body, fuel inlet tank, metal filter output, pivot bolt cam shoe, high friction cam shoe former, diaphragm actuator lever, cam relief spring, shoe set strip, bolt rivet strap, tangents

Raw text data extracted from CAD file:

Observaciones: Mecánica Dibujo: Encina G. DEPARTAMENTO DE PROYECTOS PROYECTAR 30/4/05 Lámina N° 1 Escala 1:1 FICHA TECNICA DESPIECE Y DESCRIPCION 3 24-08-07 POSICION POSICION CANTIDAD DESCRIPCION 1 1 CUERPO PRINCIPAL DE ACCION 2 1 RESORTE DIAFRAGMA 3 1 DIAFRAGMA 4 1 CUERPO DE VALVULAS 5 1 DEPOSITO ENTRADA DE COMBUSTIBLE 6 8 TORNILLOS CABEZA SEMI CILINDRICA MSI 5 7 1 FILTRO METALICO SALIDA 8 1 PERNO PIVOT ZAPATA DE LEVA 9 1 CONFORMADOR DE ZAPATA DE LEVA ALTA FRICCION 10 1 PALANCA DE ACCIONAMIENTO DIAFRAGMA 11 1 RESORTE DE ALIVIO DE LEVA 12 3 FLEJE CONJUNTO DE ZAPATA 13 3 PERNO REMACHE DE FLEJE 1 2 3 4 5 6 7 8 9 10 11 12 13 Observaciones: Mecánica Dibujo: Encina G. DEPARTAMENTO DE PROYECTOS PROYECTAR 24/08/07 Tangentes Lámina N° 1 Escala 1:1 2 24-08-07 PARA APRECIAR MEJOR COMANDO \LOCULTAR\l EN \LVENTANA GRAFICA
