Metal Pilaster for Sidewalk 3D T34.4.1 SCT – Pilastra metálica para banqueta 3D T34.4.1 SCT

Metal Pilaster for Sidewalk 3D T34.4.1 SCT – Pilastra metálica para banqueta 3D T34.4.1 SCT

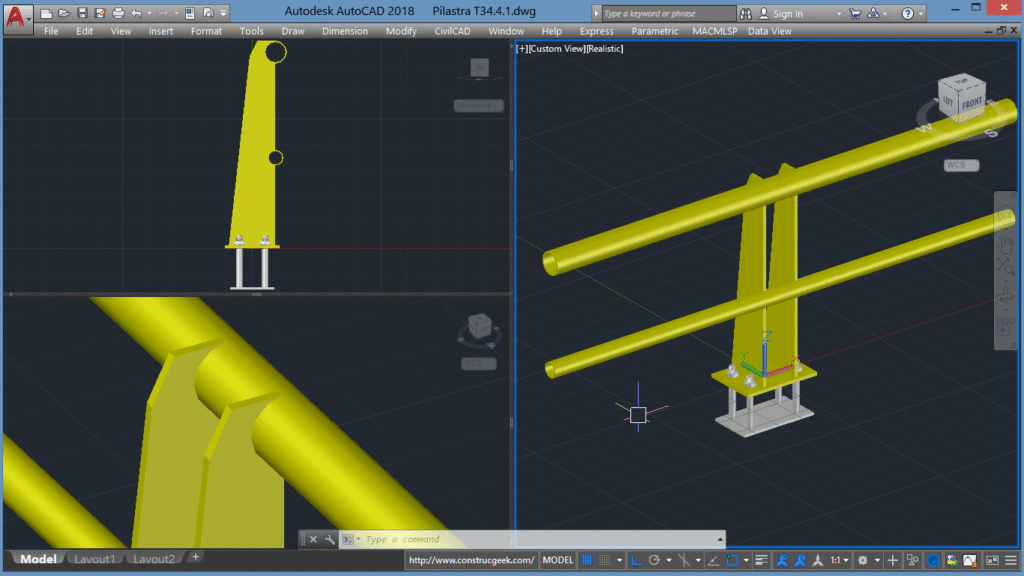

Metal pilaster T34.4.1 for sidewalk (cm), based on two 3″ and 2″ diameter SHC40 galvanized tubes; A36 steel plates of 1.27 and 0.95 thickness with 4 bolts of 1.27 diameter and ASME B18.2.2 nuts, the area of influence 1 m from the center of the pilaster

Pilastra metálica T34.4.1 para banqueta (cm), a base de dos tubos galvanizados SHC40 de 3″ y 2″ de diámetro; placas de acero A36 de 1.27 y 0.95 de espesor con 4 pernos de 1.27 de diámetro y tuercas ASME B18.2.2, el área de influencia 1 m a partir de centro de pilastra

Language	English
Drawing Type	Model
Category	Roads, Bridges and Dams
Additional Screenshots
File Type	dwg
Materials	Steel, Other
Measurement Units	Metric
Footprint Area	1 - 9 m² (10.8 - 96.9 ft²)
Building Features
Tags	Metal pilaster for sidewalk 3D T34.4.1 SCT - Pilastra metálica para banqueta 3D T34.4.1 SCT
