Metal Staircase DWG Detail for AutoCAD

Metal Staircase DWG Detail for AutoCAD

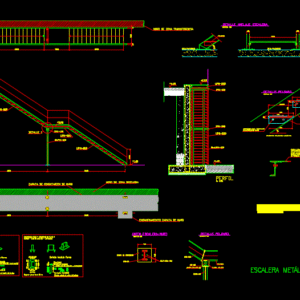

metal staircase with construction details

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

Throat welding mm, scale, Step detail, Galvanized, Screw holes, Sprinkled with sand, Surface coating, Of quartz., Epoxy, Flat sheet with, Mm bolts, Dimensions plate mm, Detail anchor bolt, Thickness base plate: mm, Pin: mm, Orient anchor to the center of the plate, concrete:, Leveling mortar, Motherboard, sheet, detail, Step detail, scale, raised, plant, Foundation, Detail anchorage ladder, Ground level, scale, step, Ground level, Transfer zone wall, Wall of zone download, Wall foundation shoe, profile, Union, scale, Hilti, Sheet metal, Detail anchor bolt, Pin: mm, Thickness base plate: mm, Leveling mortar, concrete:, Motherboard, Mm bolts, Dimensions plate mm, Widening wall shoe, The reinforcement of the wall shoe will be continued in the widening made therein for the placement of the anchor plate of the ladder., Orient anchor to the center of the plate, Metal staircase details

Raw text data extracted from CAD file:

\A1;5025 \A1;4970 \A1;3510 \A1;1650 \A1;5850 \A1;1300 \A1;80 \A1;1000 \A1;80 \A1;20 \A1;34° \A1;250 \A1;8 \A1;289.56 \A1;115 \A1;270 \A1;4970 \A1;1000 \A1;1000 33.54 \A1;179 \A1;1000 \A1;80 \A1;80 \A1;150 \A1;20 \A1;270 \A1;115 \A1;179 \A1;5200 \A1;400 \A1;150 \A1;720 \A1;130 \A1;150 \A1;150 \A1;5025 +1.00 +3.50 +6.20 5025 4970 3510 1650 5 1300 80 1000 80 GARGANTA SOLDADURA e=3.5 mm 20 ESCALA 1:5 DETALLE PELDAÑO GALVANIZADOS M-12 AGUJEROS PARA TORNILLOS 5 250 ESPOLVOREADO CON ARENA REVESTIMIENTO SUPERFICIAL DE CUARZO. EPOXI APOTEN-100 Y 8 CHAPA LISA e=6mm CON L 70x6 289.56 115 270 UPN-220 4970 2UPN-100 2UPN-100 UPN-220 Pernos = 4d16 mm (AEH-500 - corrugado) Dimensiones Placa = 250x250x10 mm ( A42 ) Detalle Anclaje Perno 40 Espesor placa base: 10 mm 100 75 75 170 250 170 40 250 40 40 100 75 40 75 32 20 10 Perno: d16 mm (AEH-500 - corrugado) Orientar anclaje al centro de la placa Hormigón: HA-25,CN Mortero de nivelación Placa base 300 CHAPA 120x120x20 UPN-220 UPN-220 2UPN-100 DETALLE 1 1000 1000 DETALLE PELDAÑO ESCALA 1:10 ALZADO PLANTA CIMENTACION DETALLE ANCLAJE ESCALERA COTA PAVIMENTO 33.54 ESCALA 1:10 PELDAÑO 179 COTA PAVIMENTO 1000 80 80 150 20 270 115 179 +6.00 +1.00 5200 MURO DE ZONA TRANSFERENCIA MURO DE ZONA DESCARGA ZAPATA DE CIMENTACION DE MURO IPE-100 IPE-100 IPE-100 PERFIL 400 150 720 130 +6.20 UNION ESCALERA-MURO ESCALA 1:5 IPE-100 HILTI HSL- M16 CHAPA DE 150X150X15 150 150 Detalle Anclaje Perno Perno: d16 mm (AEH-500 - corrugado) Espesor placa base: 10 mm 350 65 35 220 35 200 130 35 280 60 65 60 80 35 10 Mortero de nivelación 300 20 Hormigón: HA-25,CN Placa base Pernos = 4d16 mm (AEH-500 - corrugado) Dimensiones Placa = 200x350x10 mm ( A42 ) E: 1/30 E: 1/30 E: 1/30 E: 1/30 ENSANCHAMIENTO ZAPATA DE MURO 5025 \fArial|b1|i0|c0|p34;\LNOTA:\fArial|b0|i0|c0|p34;\l LA ARMADURA DE LA ZAPATA DEL MURO SE CONTINUARA EN EL ENSANCHAMIENTO REALIZADO EN LA MISMA PARA LA COLOCACION DE LA PLACA DE ANCLAJE DE LA ESCALERA. UPN-220 UPN-220 2xUPN-100 UPN-220 IPE-180 IPE-100 UPN-220 \A1;CHAPA 150x150 Orientar anclaje al centro de la placa ESCALERA METÁLICA Y DETALLES

Language	Spanish
Drawing Type	Detail
Category	Stairways
Additional Screenshots
File Type	dwg
Materials	Concrete, Other
Measurement Units
Footprint Area
Building Features	Car Parking Lot
Tags	autocad, construction, degrau, DETAIL, details, DWG, échelle, escada, escalier, étape, ladder, leiter, metal, metal stairs, staircase, stairs, stairway, step, stufen, treppe, treppen
