Metal Structure – Side View DWG Block for AutoCAD

Metal Structure – Side View DWG Block for AutoCAD

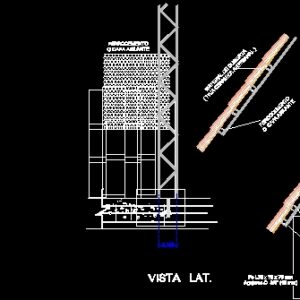

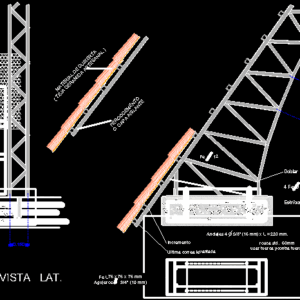

Side view of a metal structure (active vector)

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

roofing material handmade ceramic tile, feroocemento insulation layer, ferrocement insulation layer, lat., fe mm holes, anchorages mm., thread std. use nut and counter nut, increase, last strap lifted, Bend, stirrups each, insulating athermal menbranas, thick waterproof foam

Raw text data extracted from CAD file:

MATERIAL DE CUBIERTA ( TEJA CERAMICA ARTESANAL ) FEROOCEMENTO O CAPA AISLANTE 0.150 FERROCEMENTO O CAPA AISLANTE VISTA LAT. Fe L76 x 76 x 76 mm Agujeros O 3/4" (19 mm) Anclajes 4 O 5/8" (16 mm) x L = 220 mm. rosca std. 60mm usar tuerca ycontra tuerca Incremento Ultima correa levantada Fe O 12 Doblar D =60 4 Fe O 12mm Estribos Fe O 8mm cada 25 0.332 0.332 1 2 3 4 5 6 0.75m MENBRANAS ATERMICAS ISOLANT ESPUMA IMPERMEABLE 5MM DE ESPESOR

Language	Spanish
Drawing Type	Block
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials
Measurement Units
Footprint Area
Building Features
Tags	active, autocad, block, DWG, metal, METAL STRUCTURE, Side, stahlrahmen, stahlträger, steel, steel beam, steel frame, structure, structure en acier, View
