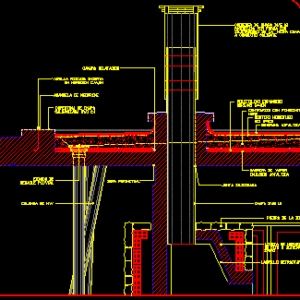

Metallic Chimney – Details

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

bwg sheet metal fireplace, stiffened by shape with, bras of the same sheet, outgoing conduit, firebrick, concrete tile, in situ system, spiro, local stone, bwg plate, silicone gasket, vapor barrier, asphalt emulsion, expanded polyethylene, subfloor with hhrp slope, waterproof mortar mci, asphalt membrane, column of, storm drain funnel, perimetral buñ, cupertina of sheet galvanized bwg, neoprene washer, Threaded rod inserts in concrete, detail, camera dilatation

Raw text data extracted from CAD file:

CHIMENEA DE CHAPA BWG 18 RIGIDIZADA POR FORMA CON SUJETADORES DE LA MISMA CHAPA A CONDUCTO SALIENTE LADRILLO REFRACTARIO LOSETA DE HORMIGON IN SITU O SISTEMA SPIRO PIEDRA DE LA ZONA CHAPA BWG 18 JUNTA SILICONADA BARRERA DE VAPOR EMULSION ASFALTICA POLIETILENO EXPANDIDO 20KG/M3 E=4CM CONTRAPISO CON PENDIENTE HHRP MORTERO HIDROFUGO MCI E=1CM MEMBRANA ASFALTICA COLUMNA DE H°A° EMBUDO DE DESAGUE PLUVIAL BUÑA PERIMETRAL CUPERTINA DE CHAPA GALBANIZADA BWG 24 ARANDELA DE NEOPRENE VARILLA ROSCADA INSERTA EN HORMIGON C/A,5M DETALLE 1 1:10 CAMARA DILATACION

Language	Spanish
Drawing Type	Detail
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials	Concrete
Measurement Units
Footprint Area
Building Features	Fireplace
Tags	autocad, chimney, DETAIL, details, DWG, imperméabilisation, imprägnieren, metallic, texsa, texsa waterproofing, waterproofing
