Metallic Structures DWG Detail for AutoCAD

Metallic Structures DWG Detail for AutoCAD

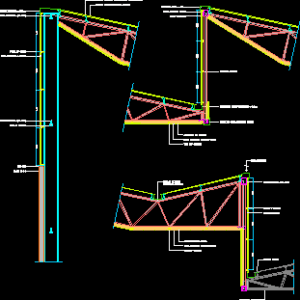

Details several connections walls – Metallic ships

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

Galvanized sheet cover, angular, Perimeter bound, Prelaced sheet, profile, Plate top, Perimeter bound, license plate, White prelaced veneer top, tube, White prelaced sheet, Ibr isolation, Straps with an example of the same thickness, Galvanized sheet metal channel, tube, Translucent sheet, Top bar celosia, Plate top, White prelaced sheet, Ibr isolation, tube, Existing structure, Loose channel, Galvanized, Sheet metal channel, Translucent sheet, tube, Prelaced sheet finishing, Expansion joint

Raw text data extracted from CAD file:

\A1;1.23 \A1;1.23 \A1;1.23 \A1;1.26 \A1;1.00 \A1;1.00 \A1;1.00 \A1;1.00 \A1;1.00 \A1;1.00 5 5 CUBIERTA CHAPA GALVANIZADA e=0.6mm 5 5 ANGULAR 50X50X5 ATADO PERIMETRAL (IPN-100) CHAPA PRELACADA e=0.6mm PERFIL CF-100X3 REMATE DE CHAPA e=0.6mm ATADO PERIMETRAL (IPN-100) PLACA LC-14 UPN-180 REMATE DE CHAPA PRELACADA BLANCA TUBO CPF-40X40X2 CHAPA PRELACADA BLANCA e=0.8mm AISLAMIENTO IBR e=80mm CORREAS ZF-150X2 CON EJION DEL MISMO ESPESOR CANALON DE CHAPA GALVANIZADA e=0.5mm TUBO CPF-40X40X2 5 5 5 CHAPA TRASLUCIDA BARRA SUPERIOR CELOSIA REMATE DE CHAPA e=0.6mm 5 CHAPA PRELACADA BLANCA e=0.8mm AISLAMIENTO IBR e=80mm TUBO CPF-40X40X2 ESTRUCTURA EXISTENTE CANALON SUELTO 5 GALVANIZADA e=0.5mm CANALON DE CHAPA CHAPA TRASLUCIDA TUBO CPF-40X40X2 REMATE DE CHAPA PRELACADA 5 JUNTA DILATACION

Language	Spanish
Drawing Type	Detail
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials
Measurement Units
Footprint Area
Building Features
Tags	autocad, connections, DETAIL, details, DWG, metallic, ships, stahlrahmen, stahlträger, steel, steel beam, steel frame, structure en acier, structures, walls
