Mezzanine Detail And Lateral Closed In Wood 3D DWG Detail for AutoCAD

Detail mezzanine and closed in woos – 3D – Technical specifications

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

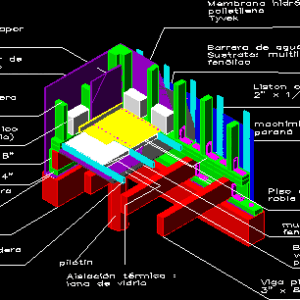

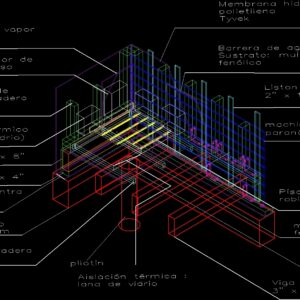

Tyvek, Machimbrado pino parana, Clavadero list, Polyethylene hydrophilic membrane, Substrate: phenolic multilaminate, Wind water barrier, Panel mount: wood, Thermal insulation, Vapor barrier polyurethane, Interior plaster rock plate, Vapor barrier polyurethane, Thermal insulation, Wooden panel pillar, Water barrier wind substrate: phenolic multilaminate, Waterproof membrane tyvek polyethylene, Clavadero list, Machimbrado pine paraná, Paraná pine beam, sill, Pilotin, Beam of chained cm, Valance, Phenolic multilaminate, Vapor barrier: polyurethane, Thermal insulation glass wool, Nail clip, Wooden floor: oak, Moisture barrier: tyvek

Raw text data extracted from CAD file:

TYVEK machimbrado pino parana 6" x 3/4" liston clavadero 2" x 1/2" Membrana hidrofuga polietireno Substrato: multilaminado fenolico Barrera de agua y viento Montante de Panel: madera 2"x 4" Aislante Térmico (lana de vidrio) Barrera de vapor poliuretano Placa interior de roca de yeso placa interior de roca de yeso barrera de vapor poliuretano aislante termico (lana de vidrio) Montante de panel : madera 2" x 4" Barrera de agua y viento Sustrato: multilaminado fenólico Membrana hidrófuga polietileno Tyvek Liston clavadero 2" x 1/2" machimbrado pino paraná 4" x 3/4" Viga pino paraná 3" x 8" Solera 2" x 4" pilotin viga de encadenado 20 x 30 cm cenefa 1" x 8" multilaminado fenólico Barrera de vapor: poliuretano Aislación térmica : lana de vidrio Listón clavadera 2" x 1" Piso de madera: roble Barrera contra humedad: Tyvek

Language	Spanish
Drawing Type	Detail
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials	Glass, Wood
