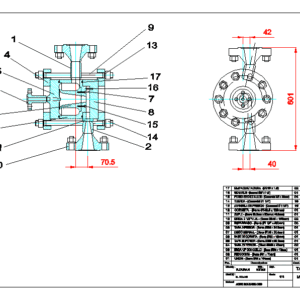

Mixer DWG Block for AutoCAD

Mixer Static raw materials.

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

engineering, drawn by:, check by:, material:, date:, r. star r., m. red, dept:, scale:, parts and details, inserts eirl, static mixer, r.duran, assembly, mantto workshop, pos., description, cant., flat number, material, ——— -, asbestos

Raw text data extracted from CAD file:

\A1;601 \A1;42 \A1;40 \A1;70.5 175.4904731214328 175.4904731214328 175.4904731214328 175.4904731214328 -436.0649987785341 -436.0649987785341 -436.0649987785341 -436.0649987785341 1/2 INGENIERIA ACERO INOXIDABLE C-316 Drawn by : Check by : Material : Date : NOV 2004 R. ESTRELLA R. M. ROJAS Dept : Scale : PIEZAS Y DETALLES INSEGE E.I.R.L MEZCLADOR ESTATICO \A1;601 \A1;70.5 \A1;40 \A1;42 1/4 ACERO INOXIDABLE C-316 Drawn by : Check by : Material : Date : NOV 2004 R.DURAN M. ROJAS Dept : Scale : MONTAJE TALLER DE MANTTO MEZCLADOR ESTATICO Pos. Descripcion 01 UNION - (Barra Ø61 x 104mm) Cant. Nº Plano 01 R4 - 2543 Material AISI 316 02 REDUCCION - (Barra Ø61 x 70mm) 01 R4 - 2544 AISI 316 03 BRIDA 1/2" CON CUELLO - (Barra Ø105 x 115mm) 01 R4 - 2545 AISI 316 04 TAPA EXTERIOR - (Disco Ø350 x 43mm) 02 R4 - 2546 AISI 316 05 TAPA SUPERIOR - (Barra Ø230 x 86.2mm) 01 R3 - 1722 AISI 316 06 BASE DE CORNETA - (Barra Ø230 x 158mm) 01 R3 - 1724 AISI 316 07 DISCO ESPIRAL - (Disco Ø150 x 20.5mm) 01 R4 - 2548 AISI 316 08 TAPA INFERIOR - (Barra Ø230 x 94.5mm) 01 R4 - 2549 AISI 316 09 ESPARRAGO - (Barra Ø1 1/4" x 430mm) 08 R4 - 2550 AISI 316 10 BRIDA 2 1/2" W.N. - (Barra Ø245 x 100mm) 02 R3 - 1725 AISI 316 11 SUPLE - (Barra 60.5mm x 80mm x 46.3mm) 01 R4 - 2551 AISI 316 12 CORNETA - (Barra Ø142.5 x 126mm) 01 R4 - 2547 AISI 316 13 ARANDELA DE PRESION - (Comercial Ø 1 1/4") 16 ---------- AISI 316 14 TUERCA - (Comercial Ø1 1/4") 16 AISI 316 ---------- 15 PERNO SOCKET ALLEN - (Comercial M6 x 35mm) 04 ---------- AISI 316 16 STOVE BOLTS - (Comercial Ø3/8" x 1 1/2") 01 ---------- AISI 316 17 EMPAQUETADURA (Ø210 x 1.5) 02 ---------- ASBESTO 1 2 3 4 5 6 7 8 9 10 11 12 14 13 15 16 17

Language	Spanish
Drawing Type	Block
Category	Industrial
Additional Screenshots
File Type	dwg
Materials	Other
Measurement Units	Metric
Footprint Area
Building Features
Tags	aspirador de pó, aspirateur, autocad, block, bohrmaschine, compresseur, compressor, drill, DWG, guincho, kompressor, machine, machine de forage, machinery, máqu, materials, mixer, press, rack, raw, staubsauger, treuil, vacuum, winch, winde
