Oil Tank DWG Block for AutoCAD

Oil Tank DWG Block for AutoCAD

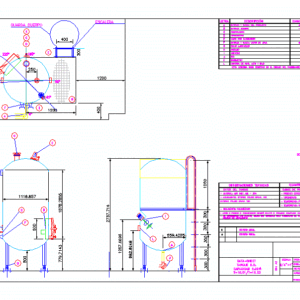

TANK used in industry for heating oil

Drawing labels, details, and other text information extracted from the CAD file (Translated from Portuguese):

Dwg, Des. Cad, review, date, per, reviewed, scale, Nestlé peru s.a, Factory of onofrio, Din:, Rev., Coord., Modifications, Plan no, Reviewed, Cad file, Approved, Project, Drawn, Approved, Date, Subscription., Graphic design, Design approval, Jzl designs, Preliminary drawing, Budget design, Material for, Caulking, Blue marble, Aqua glaze, Aqua glaze, Aqua glaze, Aqua glaze, Blue marble, Aqua glaze, Aqua glaze, Aqua glaze, Aqua glaze, Bodyguard, Staircase, This legend must be stated in the manufacturer’s drawing, letter, Adjustable feet, Scaffold, Illuminated display, Water vapor outlet, Stirrer, Description, Man entrance, Product outlet input, Vent, thermometer, Conf. manufacturer, Observation, Conf. manufacturer, diameter, External polished grana, Technical observations, Material: stainless steel aisi, Finish: Polished inner bead, The thicknesses should be defined by the manufacturer depending on the structural design, After order supplier should send complete tank design our approval, Tank data, Insulation: polyurethane, Quantity tanks, Product data, Product stock:, Tank b.o., Capacity, viscosity:, Temperature design:, Temperature operation:, Conf. manufacturer, general review, general review, Preliminary drawing, Rtd, barometer, Low level control, scale, Project, Drawn, Reviewed, Approved, Din:
