Overhead Lights DWG Block for AutoCAD

Overhead Lights DWG Block for AutoCAD

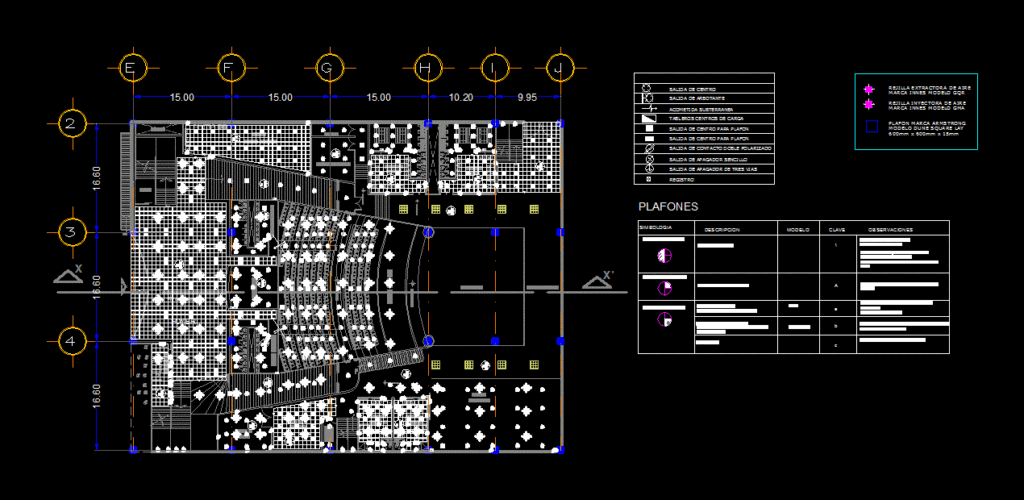

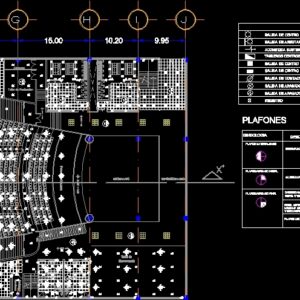

Plano acoustic plafon

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

access, n.p.t., men’s health, women’s health, general offices, area of, wardrobe, pit, stage, goes up, box office, n.p.t., foyer, goes up, ramp, goes up, ramp, goes up, n.p.t., low, ramp, duct, workshop, scenography, production workshop, goes up, n.p.t., dressing room, private, dressing room, private, goes up, cellar, services, dressing rooms, mens, dressing rooms, women, cellar, warehouse, workshop, sewing, room, break, behind schedule, goes up, symbology, description, key, observations, losacero system, model, ceilings, Pan American plaster on gutters, metal, cm modules, perforated metal panel, perforated metal panel of thickness, with visible, initial finish ceiling, metal sheets, high schools, white texture paste, metal channels, not going, serpentine, flat ceiling, plasterboard baseboard ceiling, center exit, buttler outlet, underground attack, load center boards, polarized double contact output, single damper output, three way dimmer output, registry, lamina de losacero section imsa caliber similar, welded mesh placed with prefabricated concrete supports, concrete compression layer thickness cm, base material ceiling, wire rod fasteners, wire rod fasteners for plaflon cm, finished ceiling, center outlet for ceiling, air extractor grille, brand model gqr innes, air inlet grille, brand innes model gma, armstrong brand ceiling, model dune square lay

Raw text data extracted from CAD file:

ACCESO 15.00 15.00 15.00 16.60 16.60 16.60 10.20 9.95 N.P.T. + 1.10 N.P.T. + 1.20 Sanitarios Hombres Sanitarios Mujeres Oficinas Generales Area de Guardaropa Foso de la Orquesta ESCENARIO SUBE SUBE TAQUILLAS N.P.T. + 1.20 N.P.T. + - 0.00 FOYER SUBE RAMPA SUBE RAMPA SUBE SUBE N.P.T. + 1.20 N.P.T. + 1.20 N.P.T. + - 0.00 BAJA RAMPA DUCTO Taller de Escenografia Taller de Produccion SUBE N.P.T. + - 0.00 N.P.T. - 2.00 Camerino Privado 01 Camerino Privado 02 SUBE Bodega y Servicios Camerinos Hombres Camerinos Mujeres Bodega Almacen Taller de Costura Sala de Descanso X' TRASESCENARIO SUBE X SIMBOLOGIA DESCRIPCION CLAVE 1 OBSERVACIONES SISTEMA LOSACERO MODELO a b PLAFONES YESO PANAMERICANO SOBRE CANALETAS METALICAS MODULOS DE 61 X 61 CM PANEL METALICO PERFORADO PANEL METALICO PERFORADO DE 2X 6 ESPESOR .04 CON SUSPENSIO0N VISIBLE PLAFON ACABADO INICIAL LAMINAS METALICAS Y TES PRINCIPALES Y SECUNDARIAS PASTA Y TEXTURA COLOR BLANCO CANALETAS METALICA NOVA SERPENTINA PLAFON LISO PLAFON A BASE DE TABLERO DE YESO c SALIDA DE CENTRO SALIDA DE ARBOTANTE ACOMETIDA SUBTERRANEA TABLEROS CENTROS DE CARGA SALIDA DE CONTACTO DOBLE POLARIZADO SALIDA DE APAGADOR SENCILLO SALIDA DE APAGADOR DE TRES VIAS REGISTRO Lamina de losacero seccion 4 calibre 22 de IMSA o similar Malla electrosoldada 6-6,10-10 colocada con soportes de concreto prefabricado Capa de compresion de concreto fc=200kg/cm2 espesor 7 cm PLAFON MATERIAL BASE SUJETADORES DE ALAMBRON SUJETADORES DE ALAMBRON PARA PLAFLON @ 60 CM A PLAFON ACABADO FINAL 1 A a 1 A a 1 A c 1 A c 1 A c 1 A c 1 A c 1 A a 1 A a 1 A a 1 A a 1 A a 1 A c 1 A c 1 A c 1 A c 1 A c SALIDA DE CENTRO PARA PLAFON SALIDA DE CENTRO PARA PLAFON REJILLA EXTRACTORA DE AIRE MARCA INNES MODELO GQR REJILLA INYECTORA DE AIRE MARCA INNES MODELO GMA PLAFON MARCA ARMSTRONG MODELO DUNE SQUARE LAY 600mm x 600mm x 15mm 1 A a E F G H 2 3 4 5 5 5 5 5 5 I J 5 5

Language	Spanish
Drawing Type	Block
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials	Concrete
Measurement Units
Footprint Area
Building Features
Tags	abgehängten decken, acoustic, autocad, block, ceiling, DWG, lights, overhead, plafon, plafonds suspendus, plano, suspenden ceilings
