Panel System DWG Detail for AutoCAD

Panel System DWG Detail for AutoCAD

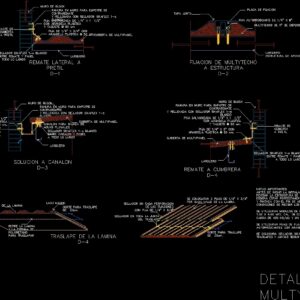

Panel System – Detail

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

block wall, Important notes: Before starting the installation it will be necessary to check the structure of which should be perfectly aligned painted in order to ensure that it is able to receive the panels. mts multypanel modules will be used. lime. with a load capacity of a weight of self-tapping fasteners with plastic washer. sikaflex white sealant will be placed in overlapping joints as indicated by plane., sikaflex white sealant between end panel full length, multytecho of thickness, self-tapping, fixing plate, overlap of sheet, male side, wall groove for contraremate recess filled with sikaflex white sealer, sikaflex white sealant between channelon panel all-long, gutter for storm water drainage, crossbar, wall groove for contraremate recess filled with sikaflex white sealer, canalon solution, fence, with plastic washer cm., galvanized peg with plastic washer cm., valley of lamina, remove the sheet from the polyurethane foam to overlap, female side, galvanized peg with plastic washer cm., roof cap, block wall, sikaflex white sealant between end panel full length, roof cap, sealant at each piercing of the fixings with, sealant throughout the overlap seal, cut to overlap, pegs will be placed in each valley of the blade., crossbar, ridge finish, multypanel cover, crossbar, multytecho fixation structure, with plastic washer cm., galvanized peg with plastic washer cm., wall groove for contraremate recess filled with sikaflex white sealer, multypanel cover, block wall, gasket, multypanel details, roof cap, strut support structure

Raw text data extracted from CAD file:

MURO DE BLOCK NOTAS IMPORTANTES: ANTES DE INCIAR LA INSTALACION SERA NECESARIO REVISAR LA ESTRUCTURA DE SOPORTE, LA CUAL DEBERA ESTAR PERFECTAMENTE INSTALADA, ALINEADA Y PINTADA CON EL FIN DE ASEGURARSE QUE ESTA EN CONDICIONES DE RECIBIR LOS PANELES. SE UTILIZARAN MODULOS DE MULTYPANEL DE 5" X 1.00 X 4.00 MTS. CAL. 26 CON UNA CAPACIDAD DE CARGA DE 420 KG/M2 Y UN PESO DE 15.45 KG/M2. SE UTILIZARAN PIJAS DE FIJACION DE 1/4" X 6" AUTORROSCANTES CON ARANDELA PLASTICA. SE COLOCARA SELLADOR SIKAFLEX 1-a BLANCO EN TRASLAPES Y JUNTAS SEGUN INDIQUE PLANO. SELLADOR SIKAFLEX 1-a BLANCO ENTRE REMATE Y PANEL A TODO LO LARGO MULTYTECHO DE 5" DE ESPESOR PIJA AUTORROSCANTE DE 1/4" X 6" PLACA DE FIJACION TRASLAPE DE LA LAMINA D-4 LADO MACHO RANURA EN MURO PARA EMPOTRE DE CONTRAREMATE Y RELLENADA CON SELLADOR SIKAFLEX 1-a BLANCO SELLADOR SIKAFLEX 1-a BLANCO ENTRE CANALON Y PANEL A TODO LO LARGO CANALON PARA BAJADA DE AGUAS PLUVIALES LARGUERO RANURA EN MURO PARA EMPOTRE DE CONTRAREMATE Y RELLENADA CON SELLADOR SIKAFLEX 1-a BLANCO SOLUCION A CANALON D-3 REMATE LATERAL A PRETIL D-1 PIJA DE 1/4" X 3/4" CON ARANDELA PLASTICA @ 50 cm. PIJA GALVANIZADA DE 1/4" X 1 1/2" CON ARANDELA PLASTICA Y TAQUETE @ 50 cm. VALLE DE LA LAMINA RETIRE LA LAMINA Y LA ESPUMA DE POLIURETANO PARA TRASLAPAR LADO HEMBRA PIJA GALVANIZADA DE 1/4" X 1 1/2" CON ARANDELA PLASTICA Y TAQUETE @ 50 cm. REMATE DE CUBIERTA A PRETIL MURO DE BLOCK SELLADOR SIKAFLEX 1-a BLANCO ENTRE REMATE Y PANEL A TODO LO LARGO REMATE DE CUBIERTA A PRETIL SELLADOR EN CADA PERFORACION DE LAS FIJACIONES CON PIJA DE 1/4" X 3/4" SELLADOR EN TODA LA JUNTA DEL TRASLAPE CORTE PARA TRASLAPE DE 20cm. CORTE PARA TRASLAPE DE 20cm. SE COLOCARAN 2 PIJAS DE 1/4" X 3/4" POR CADA VALLE DE LA LAMINA. LARGUERO REMATE A CUMBRERA D-4 CUBIERTA DE MULTYPANEL CUBIERTA DE MULTYPANEL LARGUERO FIJACION DE MULTYTECHO A ESTRUCTURA D-2 PIJA DE 1/4" X 5" CON ARANDELA PLASTICA @ 50 cm. PIJA GALVANIZADA DE 1/4" X 1 1/2" CON ARANDELA PLASTICA Y TAQUETE @ 50 cm. RANURA EN MURO PARA EMPOTRE DE CONTRAREMATE Y RELLENADA CON SELLADOR SIKAFLEX 1-a BLANCO CUBIERTA DE MULTYPANEL MURO DE BLOCK TAPA JUNTA DETALLES MULTYPANEL REMATE DE CUBIERTA A PRETIL LARGUERO ESTRUCTURA DE APOYO

Language	Spanish
Drawing Type	Detail
Category	Construction Details & Systems

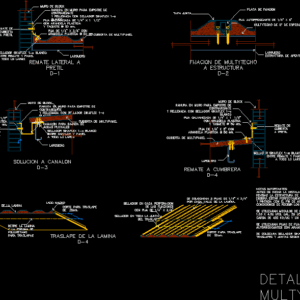

Additional Screenshots
File Type	dwg
Materials	Plastic
Measurement Units
Footprint Area
Building Features
Tags	adobe, autocad, bausystem, construction system, covintec, DETAIL, DWG, earth lightened, erde beleuchtet, losacero, panel, plywood, sperrholz, stahlrahmen, steel framing, system, système de construction, terre s
