Panels Connection DWG Detail for AutoCAD

Wooden constructive details Connection panels LxT

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

I find interior partitions in carpentry, Inner panel with mdf plates filled with mineral wool, Tapajunta, Party of lintel, wood carpentry, I find interior partitions in, Interior panel, Mineral wool padding, Vertical pair, Nail to mdf, I find interior partitions in, Nail to mdf, Party of lintel, carpentry, Green interior panel rev. Adhesive imp.

Raw text data extracted from CAD file:

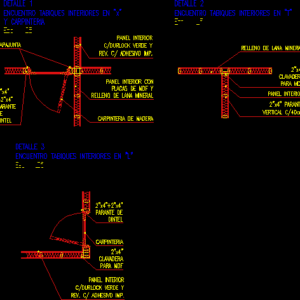

\C5;DETALLE 1 ENCUENTRO TABIQUES INTERIORES EN "x" Y CARPINTERIA \C3;Esc.: 1:25 PANEL INTERIOR CON PLACAS DE MDF Y RELLENO DE LANA MINERAL TAPAJUNTA 2"x4" +2"x4" PARANTE DE DINTEL CARPINTERIA DE MADERA \C5;DETALLE 2 ENCUENTRO TABIQUES INTERIORES EN "T" \C3;Esc.: 1:25 PANEL INTERIOR RELLENO DE LANA MINERAL 2"x4" PARANTE VERTICAL C/40cm 2"x4" CLAVADERA PARA MDF \C5;DETALLE 3 ENCUENTRO TABIQUES INTERIORES EN "L" \C3;Esc.: 1:25 2"x4" CLAVADERA PARA MDF 2"x4"+2"x4" PARANTE DE DINTEL CARPINTERIA PANEL INTERIOR C/DURLOCK VERDE Y REV. C/ ADHESIVO IMP. PANEL INTERIOR C/DURLOCK VERDE Y REV. C/ ADHESIVO IMP.
