Perimeter Base DWG Block for AutoCAD

Base for 40×80 x1.40cm lighting. armed with their specifications and mooring

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

Concrete is made up of threaded rod run of stirrups of wire tie with annealed wire stirrups each cm. Placed only on the threaded rod of apparent polished finish. Extension of the threaded rod with rod in the form of towards the corners with cm of coating cm of the floor overlap of the threaded rod with the minimum rod of cm moored don annealed wire lime. welded Mesh, Specifications, Centimeters without scale, Pyramidal base plane, Measure theoretical weight cm cm kg, detail, Mooring of threaded rod of steel with annealed wire., detail

Raw text data extracted from CAD file:

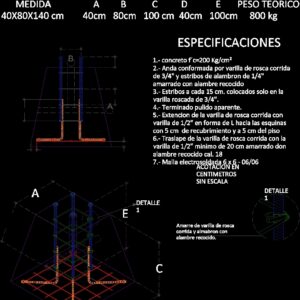

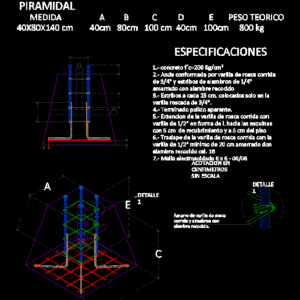

A B \A1;1.- concreto f´c=200 Kg/cm² 2.- Anda conformada por varilla de rosca corrida de 3/4" y estribos de alambron de 1/4" amarrado con alambre recocido 3.- Estribos a cada 15 cm. colocados solo en la varilla roscada de 3/4". 4.- Terminado pulido aparente. 5.- Extencion de la varilla de rosca corrida con varilla de 1/2" en forma de L hacia las esquinas con 5 cm de recubrimiento y a 5 cm del piso 6.- Traslape de la varilla de rosca corrida con la varilla de 1/2" minimo de 20 cm amarrado don alambre recocido cal. 18 7.- Malla electrosoldada 6 x 6 - 06/06 ESPECIFICACIONES ACOTACION EN CENTIMETROS SIN ESCALA PLANO BASE PIRAMIDAL MEDIDA A B C D E PESO TEORICO 40X80X140 cm 40cm 80cm 100 cm 40cm 100cm 800 kg DETALLE 1 Amarre de varilla de rosca corrida y almabron con alambre recocido. C E DETALLE 1 A

Language	Spanish
Drawing Type	Block
Category	Water Sewage & Electricity Infrastructure
Additional Screenshots
File Type	dwg
Materials	Concrete, Steel
Measurement Units
Footprint Area
Building Features
Tags	armed, autocad, base, block, DWG, electrical installation, haute tension, hochspannung, kläranlage, lighting, mooring, perimeter, specifications, Street lighting, treatment plant, wiring, xcm
