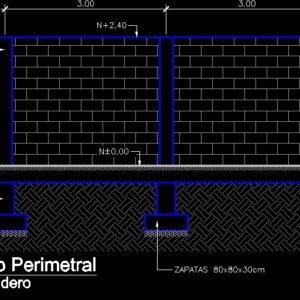

Detail perimeter wall 2.40m – Boundary Enclosure

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

bed of stones, shoes, pedestals, braces, ground level, concrete blocks, concrete columns of high, finished in clean work, detail of perimeter wall, scale, boundary fence

Raw text data extracted from CAD file:

0.90 2.40 3.00 3.00 0.30 0.60 0.30 5 5 5 5 5 5 5 LECHO DE PIEDRAS ZAPATAS 80x80x30cm PEDESTALES 35x35cm RIOSTRAS 30x30 NIVEL DE TERRENO BLOQUES DE CONCRETO 40x20x15 COLUMNAS DE CONCRETO DE 25x25cm Y 2.40m DE ALTO N±0.00 N+2.40 ACABADO EN OBRA LIMPIA Detalle de Muro Perimetral Escala 1 : 50 Cerramiento de Lindero

Language	Spanish
Drawing Type	Detail
Category	Construction Details & Systems
