Perimeter Wall Fixture DWG Block for AutoCAD

Perimeter Wall Fixture DWG Block for AutoCAD

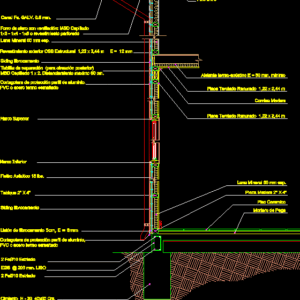

Court facade – Fiber Cement Siding Cladding – Wooden Structure – Foundation Concrete

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

insulating mineral wool., coastal pine spacing every cm, ventilated eave lining: msd brushed perforated liner, Pine tree, emplantillado cm .., wood part, mineral wool mm esp., ceramic floor, handle mortar, mortars protection pvc profile thermo enamelled steel, cutter protection aluminum profile. pvc steel enameled thermoplastic, siding asbestos cement, structural osb outer shell mm, siding asbestos cement, separation board aeration msd brushed spacing maximum cm., asbestos cement, partition, mm. smooth, fluted, upper frame, canal faith galv. mm., cornice wood, lower frame, foundation cm., asphalt paper, minimum insulation, grooved plywood, fluted, mineral wool mm esp., asphalt felt lbs., perimeter wall scantlings

Raw text data extracted from CAD file:

Aislante lana Mineral. Costaneras Pino 2 x 2" Distanciamiento cada 41 cm Forro de alero con ventilación: MSD Cepillado 1x3 - 1x4 - 1x5 o revestimiento perforado Pino 2 x 8 Emplantillado 5 Cm.. Pieza Madera 2" X 4" Lana Mineral 60 mm esp. Piso Ceramico Mortero de Pega Cortagotera de protección perfil de aluminio, PVC o acero termo esmaltado Cortagotera de protección perfil de aluminio. PVC o acero termo esmaltado Siding fibrocemento Revestimiento exterior OSB Estructural 1,22 x 2,44 m E = 12 mm Siding fibrocemento Tablilla de separación (para aireación posterior) MSD Cepillado 1 x 2. Distanciamiento maximo 60 cm. Listón de fibrocemento 5cm, E = 8mm Tabique 2" X 4" Ed6 @ 200 mm. LISO 2 Fed10 Estriado Marco Superior Canal Fe. GALV. 0.5 mm. Cornisa Madera Marco Inferior Cimiento H - 20 40x60 Cm. Papel Asfaltico Nº10 Aislante termo-acústico E = 50 mm, mínimo Placa Terciado Ranurado 1,22 x 2,44 m Placa Terciado Ranurado 1,22 x 2,44 m 2 Fed10 Estriado Lana Mineral 60 mm esp. Fieltro Asfaltico 15 lbs. Escantillón Muro Perimetral

Language	Spanish
Drawing Type	Block
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials	Aluminum, Concrete, Plastic, Steel, Wood
Measurement Units
Footprint Area
Building Features
Tags	aluminio, aluminium, aluminum, autocad, block, cement, cladding, concrete, court, DWG, facade, fiber, fixture, FOUNDATION, gesso, gips, glas, glass, l'aluminium, le verre, mauer, mur, panels, parede, partition wall, perimeter, plaster, plâtre, siding, straightedge, structure, vidro, wall, wooden
