Pipe Trenches DWG Detail for AutoCAD

Pipe Trenches DWG Detail for AutoCAD

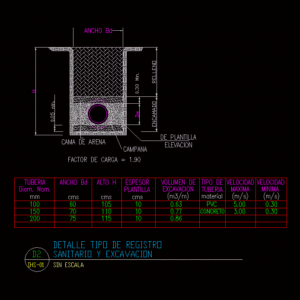

Detail record type health and excavating. No Scale

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

Min., unscaled, Record type detail, Sanitary excavation, Width bd, Sand bed, pipeline, Diam. Nom., high, thickness, Cms, template, Bell, charge factor, speed, Maximum, volume of, excavation, kind of, pipeline, Pvc, concrete, material, elevation, Template, Minimum, speed, Width bd, Min.

Raw text data extracted from CAD file:

0.05 min. De \A1;ENCAMADO D2 IHS-01 SIN ESCALA DETALLE TIPO DE REGISTRO SANITARIO Y EXCAVACION ANCHO Bd CAMA DE ARENA TUBERIA Diam. Nom. 100 mm 150 200 ALTO H ESPESOR cms cms cms 60 70 75 115 110 105 10 10 10 PLANTILLA CAMPANA FACTOR DE CARGA = 1.90 VELOCIDAD MAXIMA (m/s) 5.00 3.00 VOLUMEN DE EXCAVACION (m3/m) 0.63 0.77 0.86 TIPO DE TUBERIA PVC CONCRETO material ELEVACION DE PLANTILLA MINIMA VELOCIDAD (m/s) 0.30 0.30 \A1;RELLENO \A1;H ANCHO Bd 0.30 Min.

Language	Spanish
Drawing Type	Detail
Category	Water Sewage & Electricity Infrastructure
Additional Screenshots
File Type	dwg
Materials	Concrete
Measurement Units
Footprint Area
Building Features	Car Parking Lot
Tags	autocad, DETAIL, distribution, ditch, DWG, fornecimento de água, health, kläranlage, l'approvisionnement en eau, pipe, record, register, scale, supply, treatment plant, trenches, type, wasserversorgung, water
