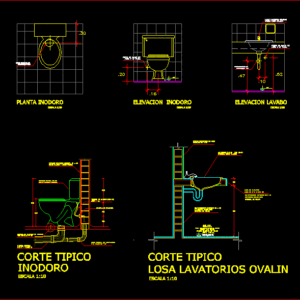

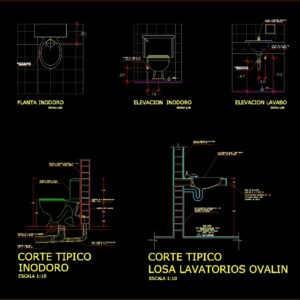

Plumbing – Labatory – Toilet

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

wash basin, scale, toilet lift, toilet plant, lavatory standar vainsa linea galaxy, pvc drain outlet, of water outlet fe.go., pvc drain outlet, scale, ss.hh., national forge of color, national ceramic floor, fine grain color, joint mm., n.p.t., toilet, typical cut, scale, ceramic tile national color white series stone, toilet white tifani crown national, piping drain pvc class, toilet fixing system see detail nº, water supply pipe cu., ups pvc ventilation pipe class, Fixation canopy, bicelado of mm, wall built-in mirror, lavatory ovalin type sonet, national color white, textured fine grain, ceramic coating, national color, cm slab, ovalines table, national color, ceramic coating, textured fine grain, scale, typical cut, ovalin lavatories

Raw text data extracted from CAD file:

\A1;.47 \A1;.52 \A1;.10 \A1;.16 \A1;.20 \A1;.30 ELEVACION LAVABO ESCALA 1/20 ESCALA 1/20 ELEVACION INODORO PLANTA INODORO .47 .52 .10 .16 .20 \A1;LLAVE LAVATORIO STANDAR VAINSA LINEA GALAXIA PUNTO DE SALIDA DE DESAGUE d 2" PVC .30 \A1;PUNTO DE SALIDA DE AGUA d ½" Fe.Go. \A1;PUNTO DE SALIDA DE AGUA d ½" Fe.Go. PUNTO DE SALIDA DE DESAGUE d 4" PVC ESCALA 1/20 SS.HH. FRAGUA NACIONAL DE COLOR PISO CERAMICO NACIONAL 30x30 GRANO FINO COLOR JUNTA e=5 mm. N.P.T. \A1;0.10 \A1;0.80 INODORO CORTE TIPICO ESCALA 1:10 ENCHAPE CERAMICO NACIONAL 30 x 30 COLOR BLANCO - SERIE PIEDRA INODORO CORONA TIFANI COLOR BLANCO NACIONAL \A1;0.43 \A1;0.75 TUBERIA DESAGUE PVC 4" - CLASE 10 SISTEMA DE FIJACION DE INODORO VER DETALLE Nº 08 \A1;0.21 \A1;0.16 \A1;0.38 TUBERIA DE ALIMENTACION DE AGUA - Cu. SUBE TUBERIA DE VENTILACION PVC CLASE 10 - 2" CANOPLA DE FIJACION BICELADO DE 6 mm ESPEJO EMPOTRADO EN MURO LAVATORIO OVALIN TIPO SONET NACIONAL COLOR BLANCO TEXTURADO GRANO FINO REVESTIMIENTO CERAMICO 30 x 30 NACIONAL DE COLOR LOSA DE C° e = 6.50 cm MESA DE OVALINES NACIONAL DE COLOR REVESTIMIENTO CERAMICO 30 x 30 TEXTURADO GRANO FINO ESCALA 1:10 CORTE TIPICO LOSA LAVATORIOS OVALIN +/- 0.00 + 0.00 + 0.00

Language	Spanish
Drawing Type	Block
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials
Measurement Units
Footprint Area
Building Features
Tags	abwasserkanal, autocad, banhos, block, casa de banho, DWG, fosse septique, mictório, plumbing, sanitär, Sanitary, sewer, toilet, toilette, toilettes, urinal, urinoir, wasser klosett, WC
