Project Latrines DWG Full Project for AutoCAD

Project Latrines DWG Full Project for AutoCAD

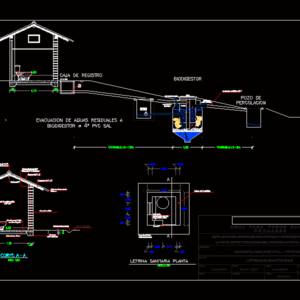

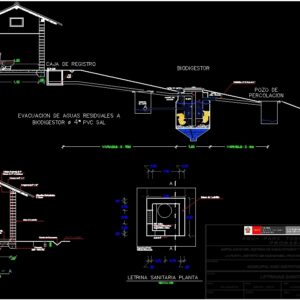

Project Latrines. Cortes with Details Constructivos.

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

brick wall, Galvanized roof projection, Npt, Polished cement with striped ocher, Board of, Sanitary latrine plant, scale:, Biodigester, variable, N. T:, Drainage of wastewater biodigestor pvc salt, variable, Pipe pvc salt, register machine, N.p.t, cut:, Esc., Spars of, Belts, Galvanized calamine clay roof ridge, Galvanized calamine:, wood, Threshold wooden table, Round wood of strings, brick wall, Affirmed, Coronation ditch, Cement floor with striped ocher, Wooden door, N.p.t, Installation of the drinking water system sanitation of the town of, Cajamarca, Apartment, Rev:, flat:, agreement:, The province district of santa cajamarca., District municipality pronoun, location:, date:, sheet:, Prov, Approve, Dist:, Esc .:, Santa Cruz, Andabamba, tip, June, Indicated, Sanitary latrines, filter, Mud log, Drain outlet, Cleaning cap, top, Outlet of treated water, Percolation well

Raw text data extracted from CAD file:

\A1;0.20 \A1;1.20 \A1;0.20 \A1;.20 \A1;0.60 \A1;0.70 \A1;.20 \A1;.20 \A1;0.35 \A1;0.60 \A1;0.35 \A1;.20 \A1;VARIABLE : 2 - 5m \A1;VARIABLE : 5 - 10M \A1;.05 \A1;1.50 \A1;2.07 \A1;1.20 \A1;.10 \A1;.05 \A1;.25 \A1;1.10 \A1;.25 \A1;.25 \A1;1.10 \A1;.25 \A1;2.80 \A1;1.60 \A1;1.60 \A1;2.24 \A1;2.80 \A1;.75 \A1;1.20 5 5 5 .20 5 5 .20 .20 5 5 5 .20 Muro de Ladrillo Proyeccion de Techo ^JCalamina Galvanizada NPT : 0.00m Cemento Pulido con Ocre Rayado 0.20m x 0.20m Junta de 1\H1.0833x;" LETRINA SANITARIA PLANTA ESCALA: 1/30 A A \W2.93624; BIODIGESTOR 5 VARIABLE : 2 - 5m \W8.04957; N.F\W8.04957; -0.50 N. T: 0.00 \W1.25051; EVACUACION DE AGUAS RESIDUALES A \W1.25051; BIODIGESTOR Ø 4" PVC SAL VARIABLE : 5 - 10M \W2.31526; TUBERIA PVC SAL Ø 4 " \W0.48386; CAJA DE REGISTRO 5 \W1.83764; P - I 1.20 5 5 5 5 1.10 5 N.P.T : 0.00M N.P.T : 0.00M CORTE: A - A ESC. 1/30 \W7.72766; Largueros de 2" x 3" \W7.72766; Largueros de 2" x 3" \W9.61655; Correas de 2" x 1" \W9.61655; Correas de 2" x 1" \W1.77915; Cumbrera de Teja de Arcilla \W1.77915; o de Calamina Galvanizada Calamina Galvanizada: 0.25mm Calamina Galvanizada: 0.25mm \W6.99459; Madera Ø 4" Umbral de Madera Tabla \W8.11180; 1.50" x 8" Madera Redonda Ø 4"Clavos de 4" o Tirafones Madera Redonda Ø 4"Clavos de 4" o Tirafones Muro de Ladrillo \W8.50002; Afirmado e = 10cm Cuneta de Coronacion Piso Cemento Pulido^J con Ocre Rayado \W5.06302; Puerta de Madera 5 1.10 5 N.P.T : 0.00M 2.80 1.60 1.60 5 5 5 1.20 INSTALACION DEL SISTEMA DE AGUA POTABLE Y SANEAMIENTO DE LA LOCALIDAD DE CAJAMARCA DPTO: RVDO: PLANO: CONVENIO: LA PUNTA, DISTRITO DE ANDABAMBA, PROVINCIA DE SANTA CRUZ, CAJAMARCA. MUNICIPALIDAD DISTRITAL - PRONASAR LOCALIDAD: FECHA: LAMINA: PROV: APROB: DIST: ESC.: A G U A P A R A T O D O S R U R A L P R O N A S A R SANTA CRUZ ANDABAMBA LA PUNTA JUNIO DEL 2012 L-01 INDICADA LETRINAS SANITARIAS FILTRO REGISTRO DE LODOS INGRESO DEL DESAGÜE TAPÓN DE LIMPIEZA TAPA SALIDA DE AGUA TRATADA \W4.17434; POZO DE \W4.17434; PERCOLACION \W8.42548; Cimiento\W8.42548; 1:10 + 30% PM

Language	Spanish
Drawing Type	Full Project
Category	Bathroom, Plumbing & Pipe Fittings
Additional Screenshots
File Type	dwg
Materials	Wood
Measurement Units
Footprint Area
Building Features
Tags	autocad, construction details, constructivos, cortes, details, DWG, full, latrine, latrines, Project, Sanitary, toilet, toilette, toilettes, WC
