Swimming pool project – Details

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

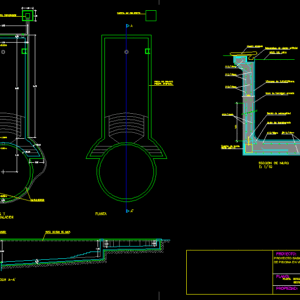

property:, flat:, draft:, scale:, date:, pool in single family home, plant. quotas installation schema, constructive section, basic project execution, reinforced concrete wall, artificial stone overflow, vitrogres of, wall section, edge bump, sealing band, concrete joint, water level, artificial stone, purification equipment, section, quota plant, installation schema, plant, artificial stone, auction piece, brick wall wall, vessel wall, cleaning concrete, drain valve, skimmer, maximum water level, artificial stone, auction piece, impellers, polyester hut

Raw text data extracted from CAD file:

\A1;4.69 \A1;0.25 \A1;4.20 \A1;0.25 \A1;9.63 \A1;0.25 \A1;9.75 \A1;1.30 \A1;R3.81 \A1;R2.60 \A1;15.91 \A1;1.13 \A1;3.18 \A1;1.67 \A1;0.25 \A1;0.60 \A1;0.50 \A1;1.50 \A1;2.00 \A1;0.27 \A1;1.00 \A1;1.00 PROPIEDAD: PLANO: PROYECTO: ESCALA: FECHA: 1:100 DE PISCINA EN VIVIENDA UNIFAMILIAR PLANTA. COTAS. ESQUEMA DE INSTALACION SECCION CONSTRUCTIVA 3 PROYECTO BASICO Y DE EJECUCION Muro de hormigon armado Rebosadero de piedra artificial #d12/15cm Vitrogres de 2.50x2.50cms. SECCION DE MURO Zuncho de borde 4d16 ed8/15 E: 1/10 1.00 d10/15cm d12/15cm Banda de estanquidad Junta de hormigonado d12/15cm 0.20 d12/15cm d12/15cm NIVEL DEL AGUA Piedra artificial 0.27 5 5 4.20 5 5 5 5 5 5 5 5 5 5 5 5 EQUIPO DEPURADOR 5 2.00 5 5 A A' SECCION A-A' PLANTA DE COTAS Y ESQUEMA DE INSTALACION PLANTA 5 PIEDRA ARTIFICIAL PIEZA DE REMATE PARED 1/2 PIE DE LADRILLO (ENCOFRADO PERDIDO) (HORMIGON GUNITADO) PARED DEL VASO HORMIGON DE LIMPIEZA VALVULA DE DESAGUE SKIMMER NIVEL MAXIMO DE AGUA PIEDRA ARTIFICIAL PIEZA DE REMATE IMPULSORES CASETA DE POLIESTER -2.00m -1.05m -0.60m -0.50m 5 5

Language	Spanish
Drawing Type	Full Project
Category	Pools & Swimming Pools
Additional Screenshots
File Type	dwg
Materials	Concrete
