Pump – Details 3D DWG Detail for AutoCAD

Pump – Details 3D DWG Detail for AutoCAD

3d Pump – Details

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

pump idb, max: hmax: size: mm, kw hp, pump idb, max: hmax: size: mm, kw hp, peripheral domicile, references front cover flange body rear cover covers fan shaft impeller secure seger seal retainer cap screws flange screws thread protector plug drain plug stopper washer bearings washer corrugated port connections connection cover identification plate cap screws. plate fasteners condenser contacts contact screws press cable screws back cover pass cables fan, technical characteristics max .: mts. flow rate: max. section: nts. power hp voltage frequency hz. speed r.p.m weight kg. measures mm.

Raw text data extracted from CAD file:

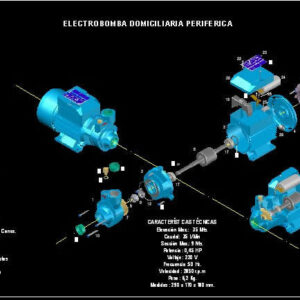

\W1.2;PACIFIC R PUMP IDB - 35 \W1.2;Q max: 35 L/min Hmax: 35 m \W1.1;Suc.L.max. 9m Size: 25 x\W1.2; 25 mm \W0.7;0.33 kW 0.45 HP 220 V 50Hz 2850 r/min \W1.2;PACIFIC R PUMP IDB - 35 \W1.2;Q max: 35 L/min Hmax: 35 m \W1.1;Suc.L.max. 9m Size: 25 x\W1.2; 25 mm \W0.7;0.33 kW 0.45 HP 220 V 50Hz 2850 r/min 6 4 3 2 1 7 8 9 11 12 13 17 14 15 16 19 20 21 22 23 24 25 26 27 28 5 13 17 18 30 \T1.35;ELECTROBOMBA DOMICILIARIA PERIFERICA 10 29 27 REFERENCIAS 1 Tapa Frontal 2 Brida 3 Cuerpo 4 Tapa Trasera 5 Cubre Ventilador 6 Eje 7 Impulsor 8 Seguro Seger 9 Sello - Retén 10 Tornillos de la Tapa 11 Tornillos de la Brida 12 O-Rin 13 Protector de Roscas 14 Tapón Purgador 15 Arandela Tapón 16 Chaveta 17 Rodamientos 18 Arandela Ondulada 19 Porta Conexiones 20 Tapa de Conexiones 21 Chapa Identificatoria 22 Tornillos de la Tapa de Conex. 23 Fijadores de la Chapa 24 Condensador 25 Contactos 26 Tornillos de los Contactos 27 Prensa Cable 28 Tornillos Tapa Trasera 29 Pasa Cables 30 Ventilador CARACTERÍSTICAS TÉCNICAS \fArial Narrow|b0|i0|c0|p34;Elevación Max.: 35 Mts. Caudal: 35 L/Min Sección Max.: 9 Nts. Potencia : 0,45 HP Voltaje : 220 V Frecuencia :50 Hz. Velocidad : 2850 r.p.m Peso : 6,2 Kg. Medidas : 290 x 170 x 180 mm.
