Pumping System DWG Block for AutoCAD

Pumping System DWG Block for AutoCAD

Contains an equalization tank, followed by a suction pipe 10 inches in diameter, long radius elbow, 2 self-priming pump. to work discontinuously every 8 hours and a discharge tank.

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

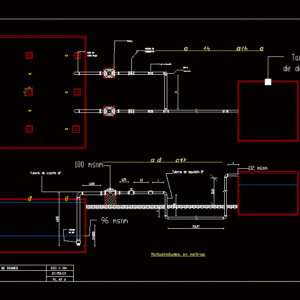

pumping system, plan view, discharge tank, pump, gate valve, v. of retention, foot valve, note: units in meters

Raw text data extracted from CAD file:

0,6 0,6 S=0.835 4.835 0,75 1,3 1 1.85 1 1 376.97 3 1.635 13.13 SISTEMA DE BOMBEO 27/09/13 PL Nº 6 ESC 1: 100 5 5 vista en planta Tanque de descarga Bomba valvula de compuerta V. de retención codo 90° radio corto codo 90° radio largo válvula de pie S=0.835 4.835 5 5 5 1.85 5 1 376.97 3 1.635 \Lvista de corte Tuberia de succión 10" Tuberia de impulsión 8" 100 msnm 112 msnm 96 msnm 13.13 Nota:Unidades en metros
