Pvc Pipe Trench Dimensions Hydraulic DWG Block for AutoCAD

CONTAINS THE TRENCH DIMENSIONS REQUIRED FOR STAY OF PVC PIPE METRIC HYDRAULIC (CLASS 5, Class 7, Class 10; ETC) AND ENGLISH SYSTEM (RD26, RD41, CD40, CD80) WHEN TUBING ON AGRICULTURAL LAND IS BURY.

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

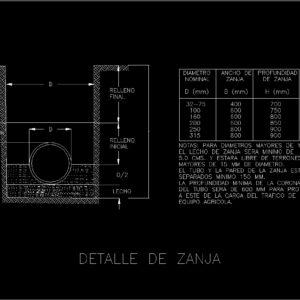

Trench detail, bed, filling, final, filling, initial, Notes: for diameters greater than, The trench bed shall be at least, Cms. Will be free of lumps, Greater than mm in diameter., The pipe the wall of the trench will be, Separated minimum mm., The minimum depth of the crown, Of the tube will be mm to protect, This from the burden of traffic, Agricultural equipment, width of, ditch, diameter, nominal, depth, Trench

Raw text data extracted from CAD file:

H \A1;H B H DETALLE DE ZANJA 150-200 mm D/2 LECHO D RELLENO FINAL RELLENO INICIAL NOTAS: PARA DIAMETROS MAYORES DE 12" B (mm) 400 600 600 600 800 800 EL LECHO DE ZANJA SERA MINIMO DE 5.0 CMS. Y ESTARA LIBRE DE TERRONES MAYORES DE 15 MM DE DIAMETRO. EL TUBO Y LA PARED DE LA ZANJA ESTARAN SEPARADOS MINIMO 150 MM. LA PROFUNDIDAD MINIMA DE LA CORONA DEL TUBO SERA DE 600 MM PARA PROTEGER A ESTE DE LA CARGA DEL TRAFICO DE EQUIPO AGRICOLA. D (mm) 32-75 100 160 250 315 200 H (mm) 700 750 800 900 900 850 ANCHO DE ZANJA DIAMETRO NOMINAL PROFUNDIDAD DE ZANJA

Language	Spanish
Drawing Type	Block
Category	Water Sewage & Electricity Infrastructure
