Qualification Structure DWG Block for AutoCAD

Qualification Structure DWG Block for AutoCAD

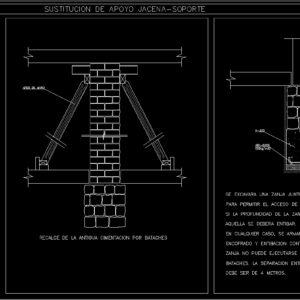

Qualification structure in work – Propping-up – Enclosed measures – Views

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

Ancient foundation, Must be meters., Bats The separation between two battaches that are made, Trench can not be run from a single must be done by points, Shuttering formwork against the walls of the opening of the, In any way the new shoe will be pre-assembled, That should be fixed., If the depth of the trench the state of the terrain do, To allow access for workers., A ditch next to the foundation will be excavated with a minimum dimension of cm, Support substitution, Emphasizes of the old foundations by bataches, Wall fence

Raw text data extracted from CAD file:

CIMENTACION ANTIGUA DEBE SER DE 4 METROS. BATACHES. LA SEPARACION ENTRE DOS BATACHES QUE SE REALICEN CONSECUTIVAMENTE, ZANJA NO PUEDE EJECUTARSE DE UNA SOLA VEZ; DEBE REALIZARSE POR PUNTOS O ENCOFRADO Y ENTIBACION CONTRA LAS PAREDES DE LA ZANJA, LA APERTURA DE LA EN CUALQUIER CASO, SE ARMARA LA NUEVA ZAPATA Y SE HORMIGONARA, PREVIO AQUELLA SE DEBERA ENTIBAR. SI LA PROFUNDIDAD DE LA ZANJA Y EL ESTADO DEL TERRENO LO HACEN NECESARIO, PARA PERMITIR EL ACCESO DE LOS TRABAJADORES. SE EXCAVARA UNA ZANJA JUNTO AL CIMIENTO CON UNA DIMENSION MINIMA DE 80 cm SUSTITUCION DE APOYO JACENA-SOPORTE RECALCE DE LA ANTIGUA CIMENTACION POR BATACHES APEO DE MURO (60kg/m3) AEH-500S H-200
