Recycling, Transfer Of Technology And Inventions DWG Block for AutoCAD

Recycling, Transfer Of Technology And Inventions DWG Block for AutoCAD

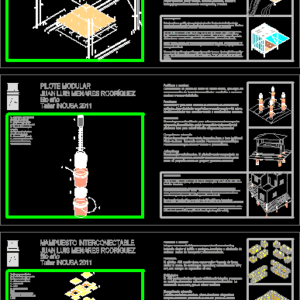

Development schematic examples of recycling, transfer of technology and inventions applied to the construction

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

non-profiled faces upper lace profile foam filling contour profiled screw cap base basal rib note is considered masonry in ABS plastic filler in ldpe., ex umbra, solemn, technical university federico santa maria, problem to solve ease of transport assembly as basic problems of structuring in emergency. They are faced with folding fold-out patterns. Strengths supported on their ends Steel product is of a common material of good mechanical behavior. armed easy. low volume weight for transport of several units per cm of weaknesses product of long-lasting material whose monetary value is unstable. need to level in electrical machinery to repair cracks. carbon footprint of steel. Relevant competition tensioned membranes based on combined resistant curves. geodesic domes of triangular lattices without interior support. mediaguas of pse zinc insulation panels. Applications can be used as bridge storage for emergency situations events., explanatory memory auto folding structure deployed fast. It is manually extended with the help of deployment means with little effort. being in its configuration of complete expansion self-supporting vertical maintenance. a shallow cubic package is formed with ease of transport for two users. can be added one of equal being the base unit a set of flexible frames that make up: sky panels covered braces. the alternate set of ball joints allows them to unfold rigidified gravitationally. primary foldable and unfoldable fastly. it spreads manually or with the help of appropriate means of with little effort. being in fully expandable and verticaly it forms shallow cubic package with ease of transport for two users. can be added to one of the same the base unit being set of flexible racks up: ceilings or floors panels and braces the alternated set of bearings and joints allows the deployment and gravitationally rigidities., problem to solve: piling conformation in works of minor that suplans the inconveniences of the standard systems: associated enormous expenses work teams. durability strengths presence material in standard construction waste. economic accessibility for professionals of the field. Standard measures that allow snap-fit ​​packaging. Weaknesses need qualified personnel to fill with adequate compact soil. need to cover the insertion surface of the pile with canvas to reduce moisture entry friction. Relevant competition wooden piles: spruce pine, teak pile, steel pile: closed section bars for moldings. Reinforced concrete piles: premolded pouring. construction applications in spas. The pile of compacted soil in plastic packaging allows to reduce costs of foundation for small-scale works in sandy flat beaches.

Raw text data extracted from CAD file:

1.- Caras no perfiladas 2.- Perfil de encaje superior 3.- Espuma de relleno 4.- Contorno perfilado 5.- Tapa rosca 6.- Base 7.- Nervadura basal Nota Se considera mampuesto en plástico ABS y relleno en LDPE. 4 1 EX UMBRA IN SOLEM UNIVERSIDAD TECNICA FEDERICO SANTA MARIA Problema a resolver Facilidad de transporte y montaje como problemáticas básicas de estructurar en emergencia. Se enfrentan con trama autoportante, plegables y desplegables. Fortalezas Apoyado en sus extremos y producto de acero estándar, es de un material común de buen comportamiento mecánico. Armado fácil. Bajo volumen y peso para transporte de varias unidades (6 m2 por 30 cm de profundidad).Reutilizable. Debilidades Producto de larga duración y material cuyo valor monetario es inestable. Necesidad de nivelar en terreno, y de maquinarias eléctricas para reparar fisuras. Huella de carbono del acero. Competencia relevante Membranas tensadas en base a curvas resistentes combinadas. Domos geodésicos de reticulados triángulares sin apoyo interior. Mediaguas de paneles de madera, y aislantes de pse y zinc. Aplicaciones Puede utilizarse como tiendas, refugios, pabellón, puente o bodegaje para situaciones de emergencia y eventos. Memoria Explicativa Estructura primaria, portátil, auto soportante, de plegado y desplegado rápido. Se extiende manualmente o con la ayuda de medios de despliegue apropiados, con poco esfuerzo. Siendo en su configuración de completa expansión y mantenimiento vertical auto sustentado. Se forma un paquete cúbico de baja profundidad con facilidad de transporte para dos usuarios. Puede adicionarse a una de igual naturaleza, siendo la unidad base un juego de bastidores flexibles que conforman: marcos, paneles de cielo o recorridos y riostras. El juego alternado de rótulas y uniones encajadas, permite que se desplieguen y rigidicen gravitacionalmente. Primary structure, portable, self-supported, foldable and unfoldable fastly. It spreads manually or with the help of appropriate means of delivery, with little effort. Being in form, fully expandable and verticaly self-sustained. It forms a shallow cubic package with ease of transport for two users. Can be added to one of the same nature, the base unit being a set of flexible racks up: frames, ceilings or floors panels and braces . The alternated set of bearings and joints fitted, allows the deployment and gravitationally rigidities. Problema a resolver: Conformación de pilotes en obras de menor escala, que supla las inconveniencias de los sistemas estándar: asociados a enormes gastos y equipos de trabajo. Fortalezas Durabilidad y presencia material en desechos de construcción estándar. Accesibilidad y económia para profesionales del rubro. Medidas estándar que permiten encaje a presión de los envases. Debilidades Necesita personal calificado para rellenar con suelo compacto adecuado. Necesidad de cubrir la superficie de inserción del pilote con lona para reducir fricción e ingreso de humedad. Competencia relevante Pilotes de madera: Pino o abeto (casas) y, haya o teca (edificios) Pilote de Acero: Barras de seccion H o cerrada para moldajes. Pilotes de Hormigón armado: Vertido o premoldeado. Aplicaciones Construcción en balnearios. El pilote de suelo compactado en envase plástico permite disminuir costos de cimentación para obras de pequeña escala en playas y planicies arenosas.
