Register Sewer Blocks DWG Block for AutoCAD

Register Sewer Blocks DWG Block for AutoCAD

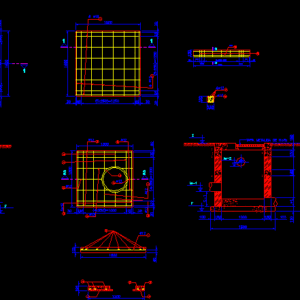

This is a sample of the type of design registration sewerage manholes, or manholes, as they are also called, used in Cuba for small and medium depths of collector sewer, where they are used concrete blocks of 0.15 m wide at the walls in order to save costs of execution; contrasting with expensive formwork complete records, that even for shallow depths, are commonly used in many places.

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

Specifications, Terrain quota, symbol, Cover quota, Inverted input, Background quota, Wall height, Miu, beta, Pipe mm, Fall mm, Inverted input, Inverted output, Total height, Pipe mm, Fall mm, Steel box, quality, Cant, total, Metal cap of hofo, Metal cap of hofo, stage:, date, flat, code:, Cant leaves, Sheet no., specialty:, Ind., scale:, Waste treatment, registry, plant, Esc., cut, Esc., cut, Esc., Bottom slab reinforcement, Esc., Bottom slab reinforcement, Esc., Reinforcement beam, Esc., section, Esc., section, Esc., section, Esc., Notes:, Concrete to be used will be mpa with a maximum size of the thick aggregate of mm being able to be realized with a dosage of water for a sack of cement with a maximum settlement in its elaboration of cm. Dimensions are given in meters. Walls will be of m blocks. The fastening will be used glued the roof slab. Plane must be seen in conjunction with plane nro

Raw text data extracted from CAD file:

C B A 1 2 3 4 C B A 1 2 3 4 1500 100 150 1000 150 100 1500 100 150 1000 150 100 Ø4 Ø2 Ø2 Ø3 µ \U+2205600 A A A ±0.00 150 150 150 Ø1 120 HT 100 150 1000 150 100 1500 C-1 ±0.00 150 150 hm 120 HT 100 150 1000 150 100 1500 1500 30 95 (5x250)=1250 95 30 30 95 (5x250)=1250 95 30 1500 A A 30 120 (4x250)=1000 120 30 30 120 (4x250)=1000 120 30 1300 150 A 150 150 120 1300 1500 120 60 1 1 1 1 5 2 8 7 4 2 8 3 7 6 9 2 4 9 2 6 10 11 11 10 No 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 R- ESPECIFICACIONES COTA DE TERRENO SIMBOLO Z T iR iR Is F hm HT Ø1 C-1 - R- R- R- R- R- R- R- COTA DE TAPA INVERTIDA DE ENTRADA COTA DE FONDO ALTURA DE MURO MIU BETA TUBO 1 mm CAIDA 1 mm INVERTIDA DE ENTRADA INVERTIDA DE SALIDA ALTURA TOTAL TUBO 2 mm TUBO 3 mm TUBO 4 mm CAIDA 2 mm Ø2 Ø3 Ø4 Ø (mm) 10 11 9 8 7 ESQUEMA(mm) 5 6 4 3 2 1 No CUADRO DE ACERO CALIDAD LONG.(m) CANT. PESO(Kg) L.TOTAL(m) 1460 1260 670 500 230 120 440 300 1260 3300 140 110 110 140 12 12 12 12 12 12 12 12 12 12 12 G-40 G-40 G-40 G-40 G-40 G-40 G-40 G-40 G-40 G-40 G-40 1.46 16 23.36 20.70 1.26 0.67 0.50 0.23 0.12 0.44 0.32 2.30 0.50 1.26 8 2 1 2 1 4 2 1 36 16 10.08 1.34 0.50 0.46 0.12 1.76 0.64 2.30 18 20.10 8.90 1.20 0.40 0.40 0.10 1.50 0.50 2.00 10.10 17.90 TOTAL 64.00 D=700 5 5 5 5 5 5 5 5 5 5 5 5 Ø4 Ø2 Ø2 Ø3 µ 5 1 1 A A µ Z TAPA METALICA DE HoFo 5 5 5 Ø1 5 Ø3 HT 5 5 1000 5 100 5 F C-1 Ie-1 Ie-2 TAPA METALICA DE HoFo Z Ie-2 ±0.00 Ø1 Is F 5 5 hm 5 HT 100 5 1000 5 5 5 5 5 5 (5x250)=<> 5 5 8 Ø12 8 Ø12 5 5 (5x250)=<> 5 5 5 Ø12 1 1 5 5 Ø12 (4x250)=<> 5 5 5 5 (4x250)=<> 5 5 5 Ø12 Ø12 Ø12 5Ø12 Ø12 Ø12 1300 2 2 5 Ø12 50 50 2x50 A A 1300 5 5 4Ø12 Ø10 5 5 5 5 5 Ø12 130 (4x200)=800 20 20 130 1 1 P.1.G Etapa: : Fecha 80127502009 Plano No.4 Feb/06 Código: Cant. Hojas Hoja No. Especialidad: Ind. Escala: Tratamiento de residuales REGISTRO 1.5x1.5 PLANTA Esc. 1:20 CORTE 2-2 Esc. 1:20 CORTE 1-1 Esc. 1:20 REFUERZO EN LOSA DE FONDO Esc. 1:20 REFUERZO EN LOSA DE FONDO Esc. 1:20 REFUERZO EN VIGA CERRAMENTO Esc. 1:10 SECCIÓN 3-3 Esc. 1:20 SECCIÓN 2-2 Esc. 1:20 SECCIÓN 1-1 Esc. 1:20 NOTAS: -EL HORMIGÓN A UTILIZAR SERÁ Rbk=17,5 MPa CON UN TAMAÑO MÁXIMO DEL ÁRIDO GRUESO DE 38 mm PUDIÉNDOSE REALIZAR CON UNA DOSIFICACIÓN DE 1:2 1/4:3 3/4 Y 29 L DE AGUA PARA UN SACO DE CEMENTO CON UN ASENTAMIENTO MÁXIMO EN SU ELABORACIÓN DE 10 cm. -LAS COTAS ESTAN DADAS EN METROS. -LAS PAREDES SERÁN DE BLOQUES DE 0,15 m. -SOLO SE UTILIZARÁ EL CERRAMENTO PEGADO A LA LOSA DE TECHO. -ESTE PLANO DEBE VERSE DE CONJUNTO CON EL PLANO Nro 3

Language	Spanish
Drawing Type	Block
Category	Water Sewage & Electricity Infrastructure
Additional Screenshots
File Type	dwg
Materials	Concrete, Steel
Measurement Units
Footprint Area
Building Features
Tags	autocad, block, blocks, called, Design, DWG, kläranlage, manholes, records, register, registration, sample, sewage, sewer, sewerage, treatment plant, type
