Reinforcing Foundation DWG Block for AutoCAD

Reinforcing Foundation DWG Block for AutoCAD

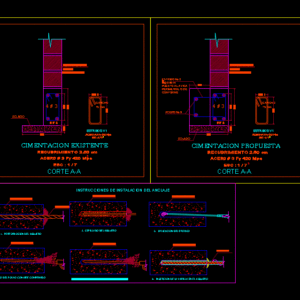

Strengthening foundation by anchoring to the existing beam

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

esc, existing foundation, coating cm, fy mpa, esc, cut, wall in, thickness, solid, hook mm, fy mpa, stirrups, sole, proposed foundation, coating cm, fy mpa, esc, cut, wall in, thickness, solid, hook mm, fy mpa, stirrups, sole, stirrup not the beam, stainless steel, existing concrete, drill, hole drilling, existing concrete, removal of dust with compressed air, existing concrete, brushing the hole, existing concrete, removal of dust with compressed air, existing concrete, epoxy application, existing concrete, insertion of the rod into the hole, steel no., anchor installation instructions

Raw text data extracted from CAD file:

5 ESC : 1 / 7 \A1;0.25 \A1;0.20 \A1;0.10 m \A1;0.08 \A1;0.20 \A1;0.22 \A1;0.08 \A1;0.20 \A1;0.22 \A1;0.25 \A1;0.20 \A1;0.10 m \A1;0.10 4 # 3 \W0.86833; CIMENTACION EXISTENTE 5 RECUBRIMIENTO 2.50 cm ACER0 # 3 Fy 420 Mpa ESC : 1 / 7 CORTE A-A MURO EN LADRILL0 ESPESOR = 0.15 m MACIZO 0.25 0.20 E # 2 GANCHO 75 mm ACER0 # 2 Fy 420 Mpa ESTRIBOS V1 5 0.08 0.20 0.22 SOLADO 4 # 3 \W0.86833; CIMENTACION PROPUESTA 5 RECUBRIMIENTO 2.50 cm ACER0 # 3 Fy 420 Mpa ESC : 1 / 7 CORTE A-A MURO EN LADRILL0 ESPESOR = 0.15 m MACIZO 0.25 0.20 E # 2 GANCHO 75 mm ACER0 # 2 Fy 420 Mpa ESTRIBOS V1 5 0.08 0.20 0.22 SOLADO ESTRIBO No 2 \C20;@ 0.60 m \C20;PUESTO A LA VIGA \C20;PERIMETRAL O DE \C20;CONTORNO ACERO No 3 0.10 CONCRETO EXISTENTE BROCA Ø 5/8" 1. PERFORAQCION DEL AGUJERO CONCRETO EXISTENTE 2. RETIRO DEL POLVO CON AIRE COMPRIMIDO CONCRETO EXISTENTE 3. CEPILLADO DEL AGUJERO CONCRETO EXISTENTE 4. RETIRO DEL POLVO CON AIRE COMPRIMIDO CONCRETO EXISTENTE 5. APLICACION DEL EPOXICO CONCRETO EXISTENTE 6. INSERCION DE LA VARILLA EN EL AGUJERO ACERO No. 2 INSTRUCCIONES DE INSTALACION DEL ANCLAJE

Language	Spanish
Drawing Type	Block
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials	Concrete, Steel
Measurement Units
Footprint Area
Building Features
Tags	anchoring, autocad, base, beam, block, DWG, Existing, FOUNDATION, foundations, fundament, reinforcing, strengthening
