Reservoir DWG Block for AutoCAD

Reservoir DWG Block for AutoCAD

It is a reservoir of 50m3

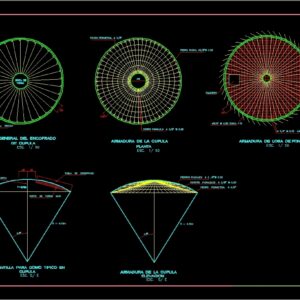

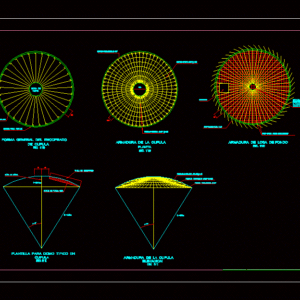

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

radial fences, parallel iron, perimeter iron, both directions, sink, triplex table sector, alfajias, mouth of, visit, plant, armor of the dome, elevation, formwork board, cupula, mouth of visit, Dome, guide shape cut, dome template typical in, general form of formwork, bottom slab reinforcement, fold, parallel iron, radial iron, perimeter iron, esc., reinforcing mouth with, tying, the steel that is in, of the senses

Raw text data extracted from CAD file:

.30 .30 \A1;31.89° .29 \A1;31.89° .20 \A1;0.60 0.25 E D Ú L R P E R L B Ú E P C I A FIERROS RADIALES d 3 /8"@ 0.25 FIERROS PARALELOS d 3/8" @ 0.25 FIERRO PERIMETRAL d 3/8" R = 4.10m 31.89° Ø 3/8" @ 0.25 AMBAS DIRECCIONES SUMIDERO SECTOR TABLA TRIPLEX ALFAJIAS 5 BOCA DE VISITA 31.89° 5 5 PLANTA ARMADURA DE LA CUPULA ARMADURA DE LA CUPULA ELEVACION TABLA DE ENCOFRADO R = 4.10m DE CUPULA f = 0.61m BOCA DE VISITA CUPULA CORTE DE FORMA GUIA PLANTILLA PARA DOMO TIPICO EN FORMA GENERAL DEL ENCOFRADO ARMADURA DE LOSA DE FONDO .20 Ø3/8" @ 0.25 DOBLA 1.15 FIERRO PARALELO Ø 3/8" @ 0.25 FIERRO RADIAL Ø3/8"@ 0.25 FIERRO PERIMETRAL Ø 3/8" 0.25 0.60 ESC. 1/ 50 ESC. 1/ 50 ESC. 1/ 50 ESC. S/ E ESC. S/ E BOCA DE ACCESO REFORZAR CON 2 Ø 3/8 CIRCULARES, AMARRANDO EL ACERO QUE SE ENCUENTRE EN DOS SENTIDOS

Language	Spanish
Drawing Type	Block
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials	Steel
Measurement Units
Footprint Area
Building Features
Tags	autocad, block, construction details section, cut construction details, DWG, reservoir
