Restaurant, Hotel 2D DWG Plan for AutoCAD
ADVERTISEMENT
ADVERTISEMENT

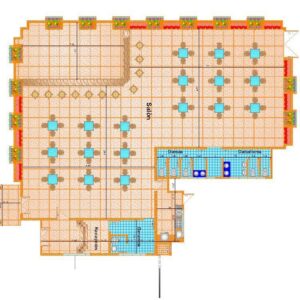

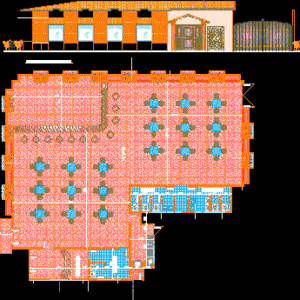

Plan and elevation view of restaurant. Plan has single floor with following areas – reception, management area, living room, restroom, 18 dining table with 4 chair, bar in corner and kitchen. Total foot print area of the plan is approximately 300 sq meters.
| Language | Spanish |
| Drawing Type | Plan |
| Category | Hotel, Restaurants & Recreation |
| Additional Screenshots |
  |
| File Type | dwg |
| Materials | Aluminum, Concrete, Glass, Masonry, Moulding, Plastic, Steel, Wood |
| Measurement Units | Metric |
| Footprint Area | 250 - 499 m² (2691.0 - 5371.2 ft²) |
| Building Features | A/C |
| Tags | 2d, autocad, DWG, elevation view, Hotel, plan, Restaurant |
