Retaining Wall DWG Detail for AutoCAD

Retaining Wall DWG Detail for AutoCAD

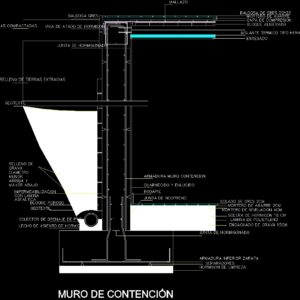

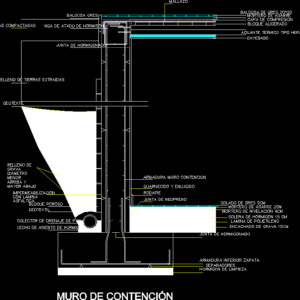

Retaining wall details with tecnical specifications

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

drainage pvc, of concrete seat, of gravel smaller diameter up greater down, with asphalt sheet, porous, of extracted land, compacted, concreting, containment, leveling, concreting, of gravel, lower shoe, cleaning, of concrete cm, polyethylene, stoneware, of grip, containment wall, plaster, neoprene, of concrete binding, stoneware, stoneware, of grip, of compression, lightened, thermal type heraklith

Raw text data extracted from CAD file:

\A1;GEOTEXTIL \A1;COLECTOR DE DRENAJE DE PVC \A1;LECHO DE ASIENTO DE HORMIGON \A1;RELLENO DE GRAVA DIAMETRO MENOR ARRIBA Y MAYOR ABAJO \A1;IMPERMEABILIZACION CON LAMINA ASFALTICA \A1;BLOQUE POROSO \A1;RELLENO DE TIERRAS EXTRAIDAS \A1;GEOTEXTIL \A1;TIERRAS COMPACTADAS \A1;JUNTA DE HORMIGONADO \A1;MURO DE CONTENCIÓN \A1;MORTERO DE NIVELACION 4CM \A1;JUNTA DE HORMIGONADO \A1;ENCACHADO DE GRAVA 15CM \A1;ARMADURA INFERIOR ZAPATA \A1;HORMIGON DE LIMPIEZA \A1;SOLERA DE HORMIGON 15 CM \A1;SEPARADORES \A1;LAMINA DE POLIETILENO \A1;SOLADO DE GRES 2CM \A1;MORTERO DE AGARRE 2CM \A1;ARMADURA MURO CONTENCION \A1;GUARNECIDO Y ENLUCIDO \A1;JUNTA DE NEOPRENO \A1;RODAPIE \A1;VIGA DE ATADO DE HORMIGON \A1;BALDOSA GRES \A1;\W1.000000;MALLAZO \A1;BALDOSA DE GRES 20*20 \A1;MORTERO DE AGARRE \A1;CAPA DE COMPRESION \A1;BLOQUE ALIGERADO \A1;AISLANTE TERMICO TIPO HERAKLITH \A1;ENYESADO

Language	Spanish
Drawing Type	Detail
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials	Concrete
Measurement Units
Footprint Area
Building Features
Tags	autocad, base, DETAIL, details, DWG, FOUNDATION, foundations, fundament, retaining, specifications, wall
