Sand Filtration Chambers, Intake And Exit DWG Detail for AutoCAD

Sand Filtration Chambers, Intake And Exit DWG Detail for AutoCAD

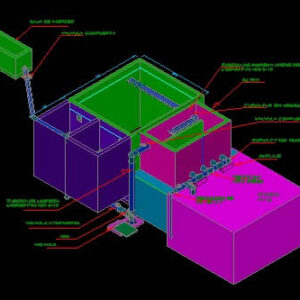

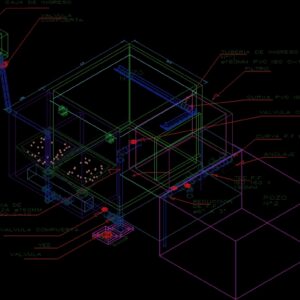

Details of sand filter chambers, intake and exit chambers, pipe dimensions and specifications.

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

water well, Pvc iso well inlet pipe, filter, Pvc iso curve, Curve f.f iso, anchorage, Tee ff, Reduction of f.f, Pvc iso cleaning pipe, gate valve, valve, gate valve, Yee, Cash register, Flocculating medium porous

Raw text data extracted from CAD file:

3,9 3,45 5 5 POZO Nº1 POZO Nº2 TUBERIA DE INGRESO (VIENE DEL POZO Nº1) ø160MM PVC ISO C-10 FILTRO CURVA PVC ISO 160MM X 90º CURVA F.F ISO 160MM X 90º ANCLAJE TEE F.F ISO 160 X 160MM REDUCCION DE F.F ø6" A 3" TUBERIA DE LIMPIEZA ø160MM PVC ISO C-10 1,86 VALVULA COMPUERTA VALVULA COMPUERTA VALVULA VALVULA COMPUERTA YEE CAJA DE INGRESO FLOCULADORES MEDIO POROSO

Language	Spanish
Drawing Type	Detail
Category	Water Sewage & Electricity Infrastructure
Additional Screenshots
File Type	dwg
Materials
Measurement Units
Footprint Area
Building Features
Tags	autocad, chambers, DETAIL, details, dimensions, distribution, DWG, exit, filter, filtration, fornecimento de água, intake, kläranlage, l'approvisionnement en eau, pipe, sand, specifications, supply, treatment plant, wasserversorgung, water
