Plant foundation of wake

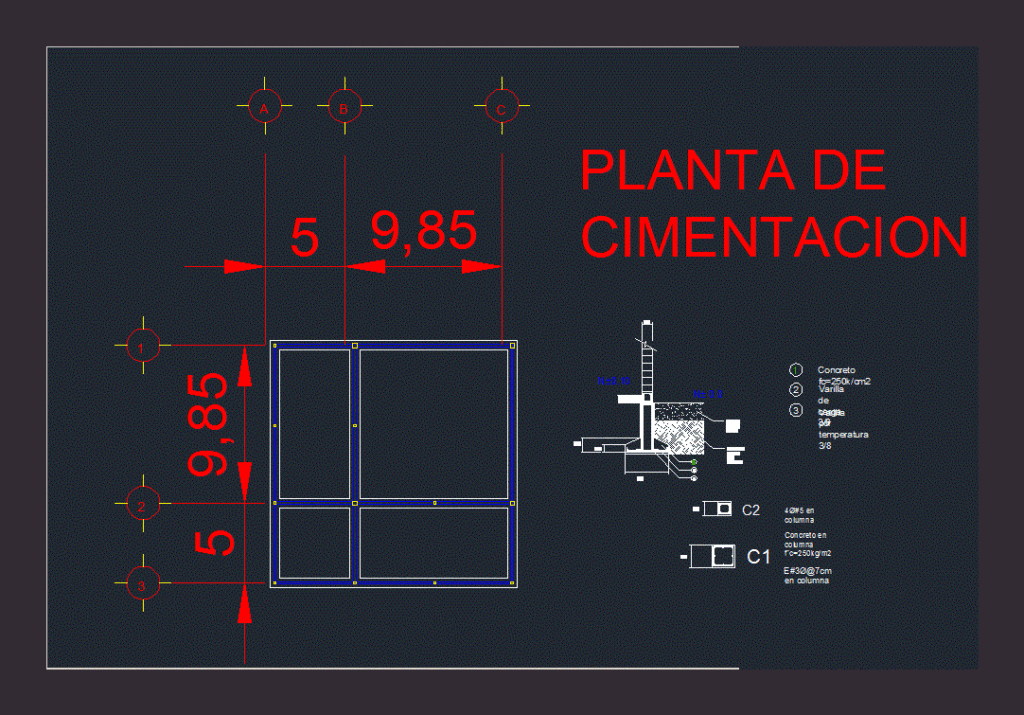

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

in column, concrete column, in column, concrete, loading rod, temperature rod, vegetable garbage layer, heavy-duty trench excavation, cimentacion plant

Raw text data extracted from CAD file:

1 9,85 5 9,85 5 4d#5 en columna Concreto en columna f´c=250kg/m2 E#3d@7cm en columna C1 C2 N± 0.0 N±0.10 1 2 3 1 2 3 Concreto fc=250k/cm2 Varilla de carga 3/8 Varilla por temperatura 3/8 Capa de basura y vegetal excavacion 0.5m de capa resistente 0.60 0.20 0.10 0.15 0.15 0.25 5 5 5 1 2 3 A B C 5 PLANTA DE CIMENTACION
