Semelle Fondation DWG Detail for AutoCAD

Semelle Fondation DWG Detail for AutoCAD

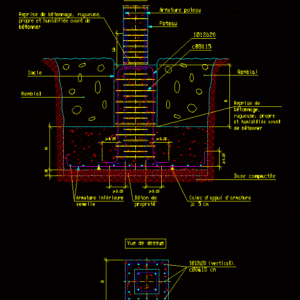

Detail avec socle Fondation pour comprendre le detail explicatif

Drawing labels, details, and other text information extracted from the CAD file (Translated from French):

lower armature, sole, armature post, compacted base, reinforcement support blocks, pedestal, concrete, cleanliness, recovery of, clean and moistened before, concreted, post, top view, bank, section, pole width, recovery of, clean, and moistened before, to concrete, insoles with base.

Raw text data extracted from CAD file:

1d12à20 1d12à20 (vertical). cd8à15 cm Armature inférieure semelle Armature poteau Base compactée Cales d'appui d'armature 5 cm cd8à15 Socle Béton de propreté Reprise de bétonnage, rugueuse, propre et humidifiée avant de bétonner Poteau Vue de dessus Remblai Remblai Section 0.10 0.20 0.20 0.20 0.20 0.20 A B B B 0.2A B largeur poteau + 0.20 H Reprise de bétonnage, rugueuse, propre et humidifiée avant de bétonner Lb Semelles avec socle.

Language	French
Drawing Type	Detail
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials	Concrete
Measurement Units
Footprint Area
Building Features
Tags	autocad, base, DETAIL, details of foundations, DWG, footings, FOUNDATION, foundations, fundament, le, pilotines
