Sewerage DWG Block for AutoCAD

Sewerage DWG Block for AutoCAD

Manhole depths up to 2 meters

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

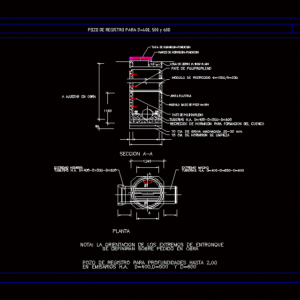

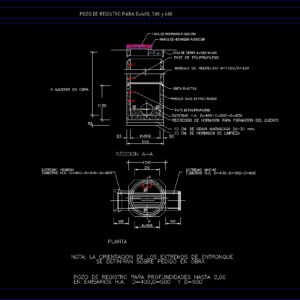

Fig., Polypropylene pate, Well ring, Elastic seal, Elastic seal, Well base module, Reinforced concrete for bowl formation, cap of, Frame of, section, Locking slab, Log depth well, In emissaries h.a., Female end, Pipelines h.a., Male end, Pipelines h.a., plant, Note: the orientation of the ends of the junction, Will be defined on order on site, Registration well for, To adjust in work, Polypropylene pate, Fig., Polypropylene pate, Screed module

Raw text data extracted from CAD file:

A 230 1240 230 1240 120 120 d=1000 1240 120 120 d=1000 Fig. 4 \A1;1240 \A1;d=1000 \A1;230 \A1;120 \A1;d=1000 \A1;120 PATE DE POLIPROPILENO ANILLO DE POZO d=1000/h=1000 o d=1000/h=330 JUNTA ELASTICA 100 d580 800 d540 60 d625 \A1;230 \A1;1240 \A1;120 \A1;120 \A1;d=1000 5% JUNTA ELASTICA MODULO BASE DE POZO d=1000 RECRECIDO DE HORMIGON PARA FORMACION DEL CUENCO TAPA DE HORMIGON-FUNDICION MARCO DE HORMIGON-FUNDICION SECCION A-A LOSA DE CIERRE d=1000/d=600 POZO DE REGISTRO PARA PROFUNDIDADES HASTA 2,00 EN EMISARIOS H.A. D=400,D=500 Y D=600 EXTREMO HEMBRA TUBERIAS H.A. D=400-D=500-D=600 EXTREMO MACHO TUBERIAS H.A. D=400-D=500-D=600 PLANTA NOTA: LA ORIENTACION DE LOS EXTREMOS DE ENTRONQUE SE DEFINIRAN SOBRE PEDIDO EN OBRA POZO DE REGISTRO PARA D=400, 500 y 600 5% 5% 5% A AJUSTAR EN OBRA 150 PATE DE POLIPROPILENO d=1000 120 120 1240 1150 d=1000 A 230 1240 Fig. 2 PATE DE POLIPROPILENO MODULO DE RECRECIDO d=1000/h=330 \A1;500 \A1;500
