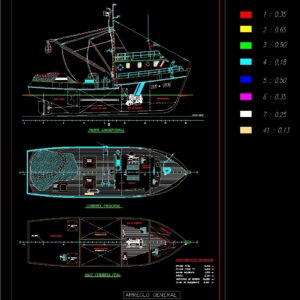

Ship DWG Block for AutoCAD

Fishing ship

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

dwl, daewoo, main deck, baseline, longitudinal profile, port hold, engine room, accommodations, servo motor, est. oil, up, starboard hold, est., est. daily, low, bridge, kitchen – dining room, bathroom, government, hatch, cellar, access, servo, cargo hold, general arrangement, axle rudder, engine, under deck ppal., water, artisanal fishing, length between pp., molded sleeve, strut, overall length, clear of frames, storage capacity, main characteristics, scale:

Raw text data extracted from CAD file:

DWL DAEWOO DAEWOO DAEWOO 200 HP CUBIERTA PRINCIPAL C L LINEA BASE 0 5 10 15 25 20 30 35 L C 0 5 10 15 25 20 30 35 C L -5 -5 C L 000 0000 -5 0 5 10 15 25 20 30 35 PERFIL LONGITUDINAL BODEGA BABOR SALA DE MAQUINAS ACOMODACIONES SERVO MOTOR EST. PETROLEO 1000 Lt EST. PETROLEO 1000Lt SUBE CAPACIDAD:11,5 m 3 3 CAPACIDAD:11,5 m BODEGA ESTRIBOR EST. 800 Lt SUBE 210 Lt EST. DIARIO BAJA BAJA PUENTE DE COCINA - COMEDOR BAÑO GOBIERNO ESCOTILLA BODEGA ACCESO SERVO SUBE SERVO MOTOR DODEGA DE CARGA SALA DE MAQUINAS ACOMODACIONES ARREGLO GENERAL EJE TIMON MOTOR ESCOTILLA BODEGA BAJO CUBIERTA PPAL. AGUA PESQUERO ARTESANAL ESLORA ENTRE PP. MANGA MOLDEADA PUNTAL ESLORA TOTAL 2,200 16,040 4,800 14,509 CLARA DE CUADERNAS CAPACIDAD DE BODEGA 0,400 23,200 m. m. m. m. m. m. 3 CARACTERISTICAS PRINCIPALES 1:50 ESCALA : ESCALA DE PLOTEO 1:50 41 : 0.13 4 : 0.18 5 : 0.50 6 : 0.35 7 : 0.25 2 : 0.65 1 : 0.35 3 : 0.50

Language	Spanish
Drawing Type	Block
Category	Vehicles
Additional Screenshots
File Type	dwg
Materials	Other
Measurement Units	Metric
Footprint Area
Building Features	Deck / Patio
Tags	autocad, block, boat, boot, DWG, fishing, ship, Transportation
