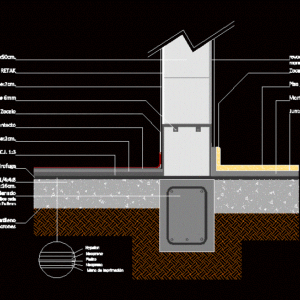

Detail Simple Foundation aerated concrete block Retak type. To Constructions field 1 – FADU UBA

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

retak block, retak adhesion bridge, double layer plaster, horizontal reinforcements fe, plinth, contact adhesive, regularizer folder, m.c.i., waterproof membrane, hhrp underfloor, beam of chained armor with faith stirrups each with faith, polyethylene film, plaster plaster monolayer, plinth, granite floor, mortise seat esp:, cement joint. esp., primer coat, hypalon, neoprene, felt, neoprene

Raw text data extracted from CAD file:

bloque retak 25x25x50cm. Puente de adherencia RETAK Revoque doble capa e:2cm. Refuerzos horizontales Fe 6mm Zocalo Adhesivo de contacto Carpeta regularizadora e:2cm. M.C.I. 1:3 Membrana hidrofuga Contrapiso de HHRP 1:1/4:4:8 E:16cm. Viga de encadenado Armadura con Fe 8mm y estribos cada 20cm con Fe 6mm Film de polietileno 200micrones revoque de yeso monocapa esp:1.5cm. Zocalo h:10cm. Piso granitico 50x50x4cm. Mortero de asiento esp: 3cm. Junta cementicia. Esp. 5mm. Mano de imprimación Hypalon Neopreno Fieltro Neopreno
