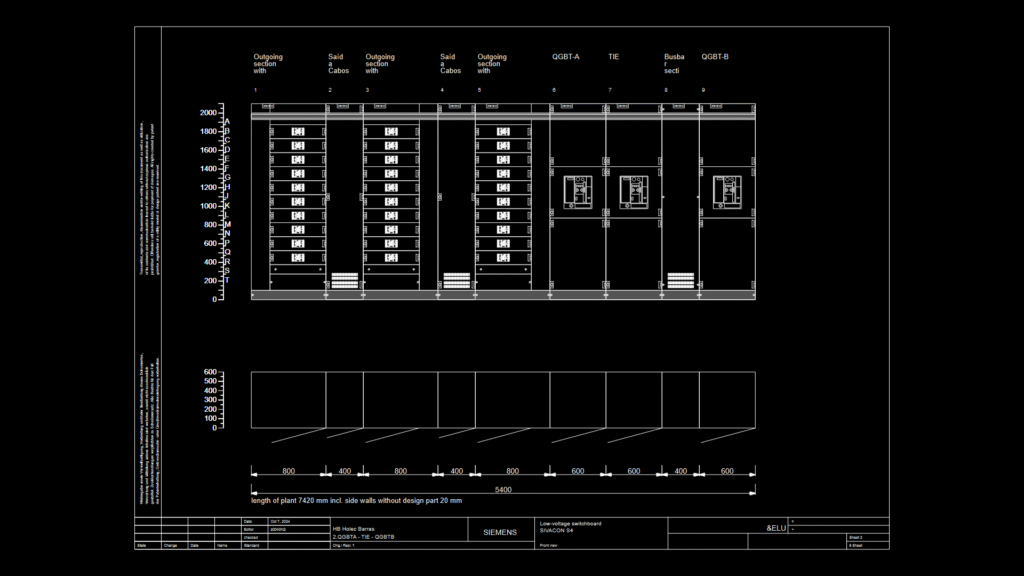

SIVACON S4 Low-Voltage Switchboard Front View Layout Drawing

This technical drawing depicts the front view layout of a Siemens SIVACON S4 low-voltage switchboard assembly, specifically configuration 2.QGBTA – TIE – QGBTB. The switchboard spans 7420mm in total length (including side walls) and consists of 9 sections arranged sequentially:

Sections 1, 3, 5: Outgoing feeder sections with multiple distribution units arranged vertically
Sections 2, 4: Cable exit sections labeled “Saída Cabos”
Section 6: QGBT-A main distribution section with control components
Section 7: TIE section for interconnection between QGBT-A and QGBT-B
Section 8: Busbar section for power distribution
Section 9: QGBT-B main distribution section

The drawing includes dimensional information showing section widths (primarily 400mm, 600mm, and 800mm) and a total width of 5400mm for the equipment itself. This standardized electrical distribution assembly follows Siemens specifications for industrial power distribution applications.
